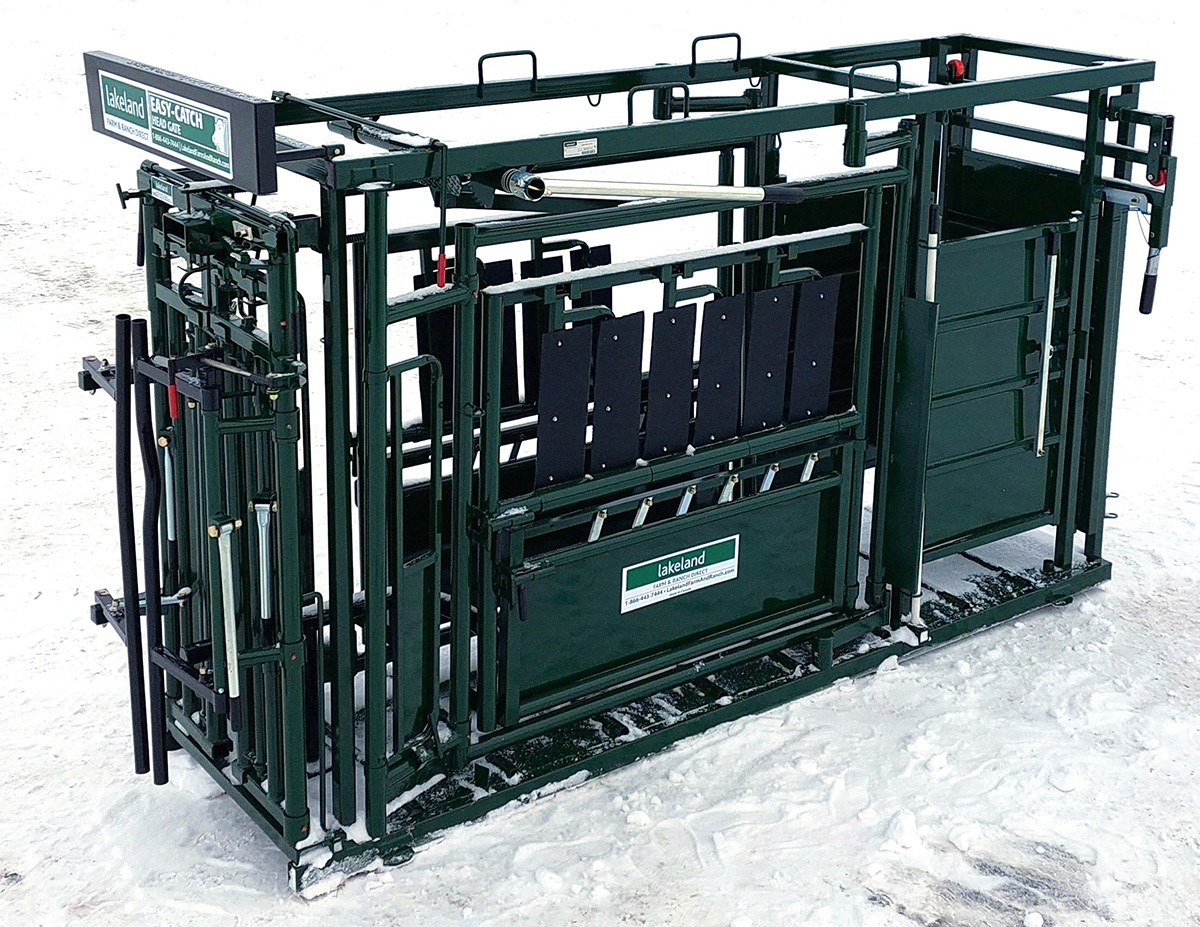

Cattle Squeeze Chute Deluxe Easy Catch

Name: Cattle Squeeze Chute Deluxe Easy Catch
SKU: IVSCDX-LK
Rating: 5.00 (1 reviews)

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)



FREE SHIPPING

on all orders over $2,000!
$99 shipping on orders under $2,000

Where Tradition Meets Innovation in Cattle Handling

Managing cattle takes grit, precision, and gear that won’t quit. Lakeland’s Deluxe Easy Catch Cattle Squeeze Chute delivers—built tough to keep pace with hardworking ranchers who demand durability, safety, and performance in every job. This chute doesn’t just meet expectations—it raises the bar.

SKU: IVSCDX-LK Categories: Cattle, Cattle Handling Equipment, Country View Acres, Greg Judy, Squeeze Chutes, Straight Pipe Acres Tags: Cattle Handling, Squeeze Chute

ADDITIONAL INFORMATION
VIDEOS
REVIEWS
FAQS
REQUEST A QUOTE

Additional Information

Additional information

Dimensions	12’ x 42’’
Weight	2000 lbs
Adjustable	Adjusts from 32’’ to 12’’
Height in Vet Cage	75"
Distance from floor to chute to ratchets	27’’-30’’
Optional Add-On	Head Gate Assist

Key Features:

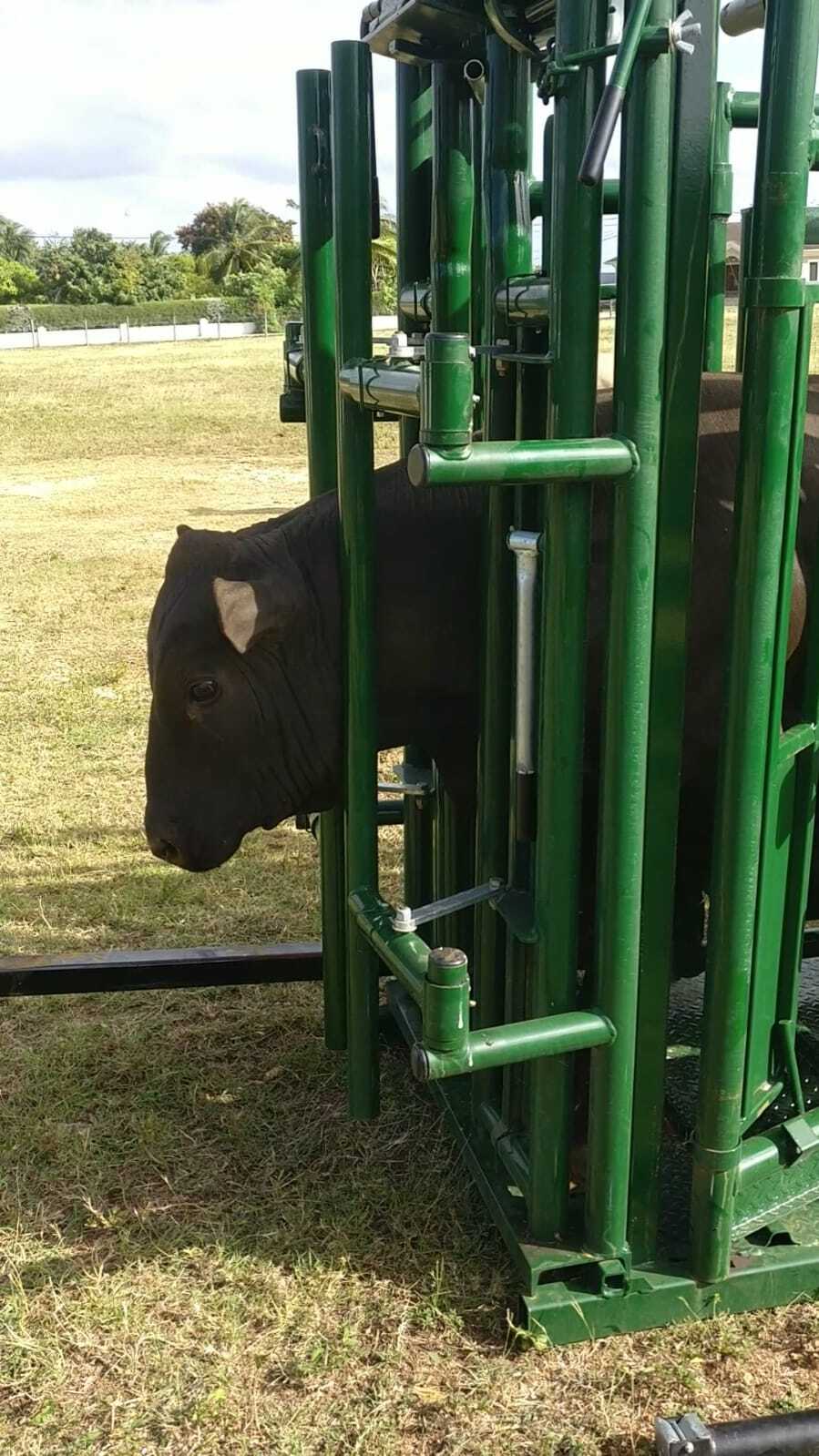

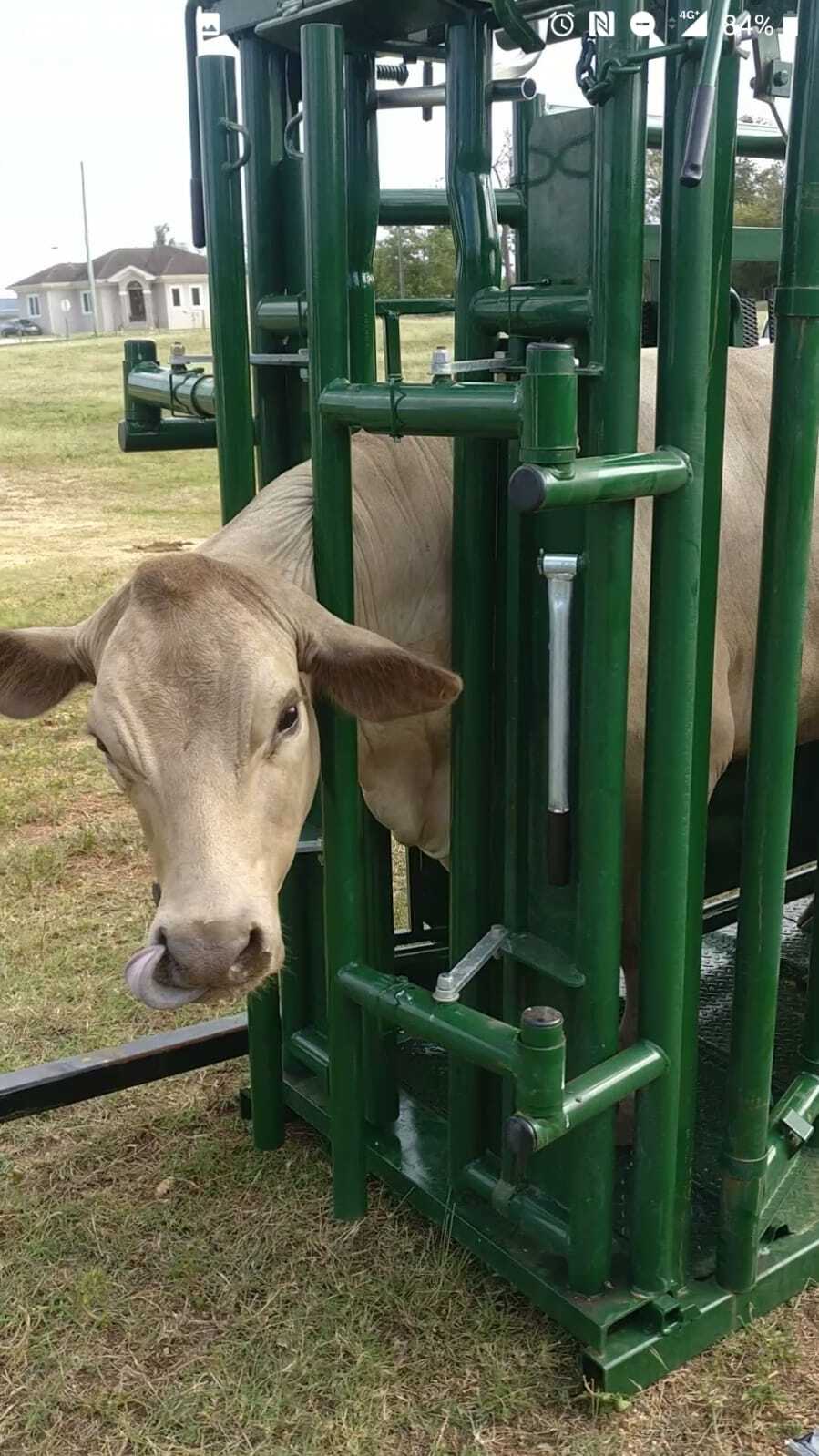

“Easy” Headgate adjustment—this makes it very easy to adjust the opening for different size animals heads/necks
“Easy” view headgate—the headgate has open bars instead of solid sheeting, so the animals can see the light ahead and flow better.
“Easy” Head/Neck sweep—this “sweeps” or pushes the animals head across to one side to hold it still for when you are neck injecting or ear tagging etc.
Positive and heavy duty roller locking system on headgate.

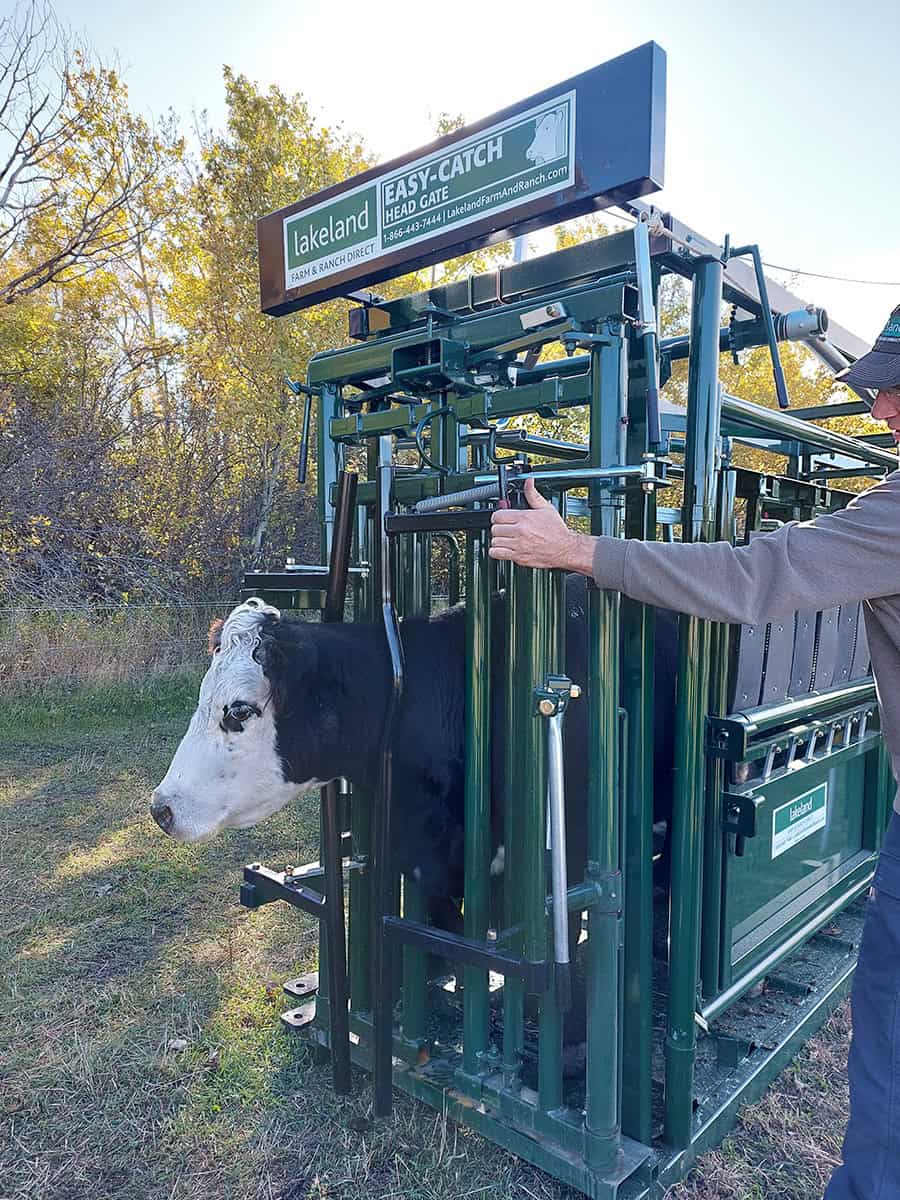

Automatic Self-Catch Headgate w/ neck extenders
Parallel axis squeeze
Fully opening both sides
Adjusts from 30’’ to 12’’
Inside width of chute is 30” wide
Heavy-Duty Sheeted Rolling door with Offside handle (reversible)
Walk through Vet Cage with reversible doors

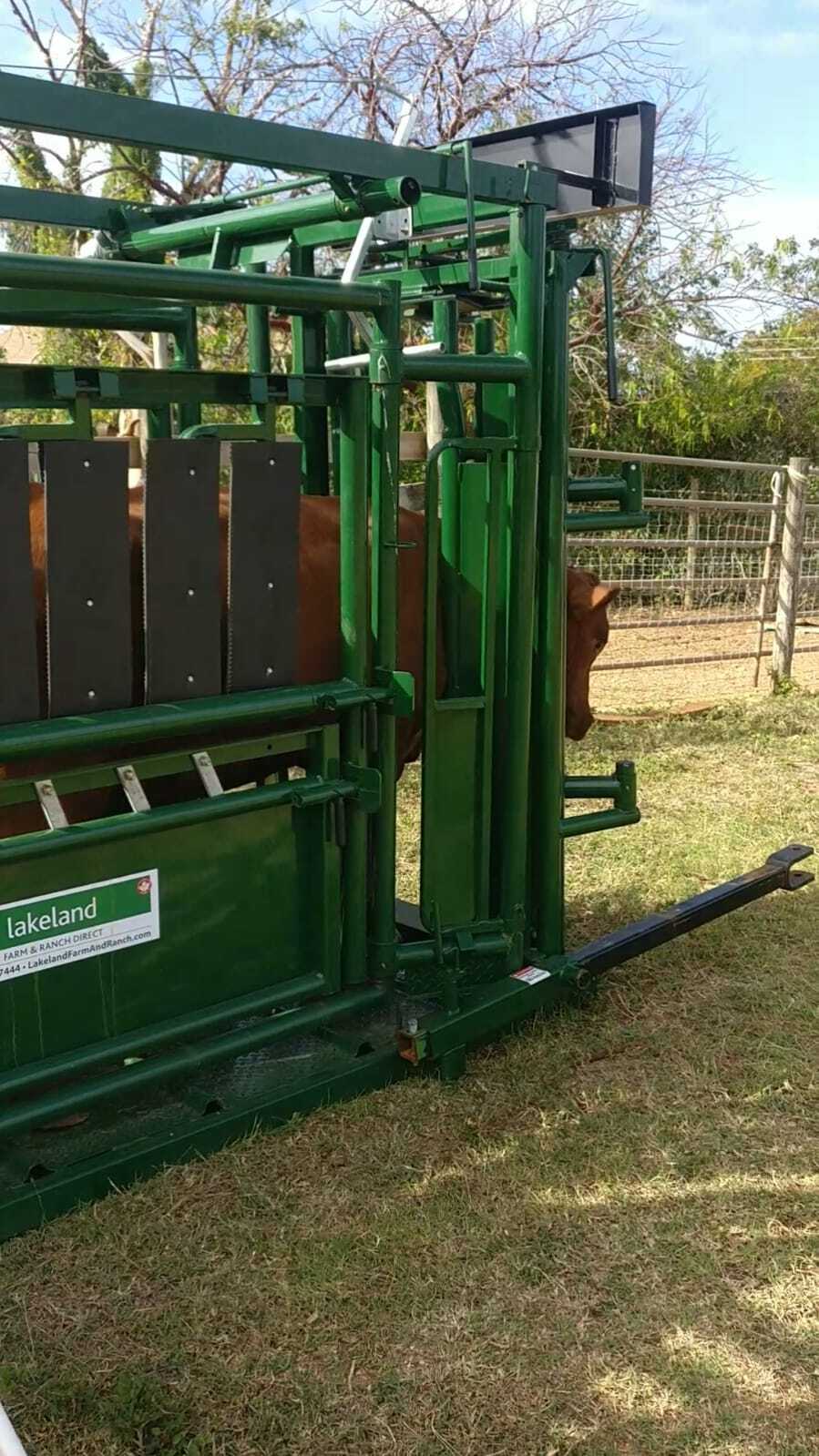

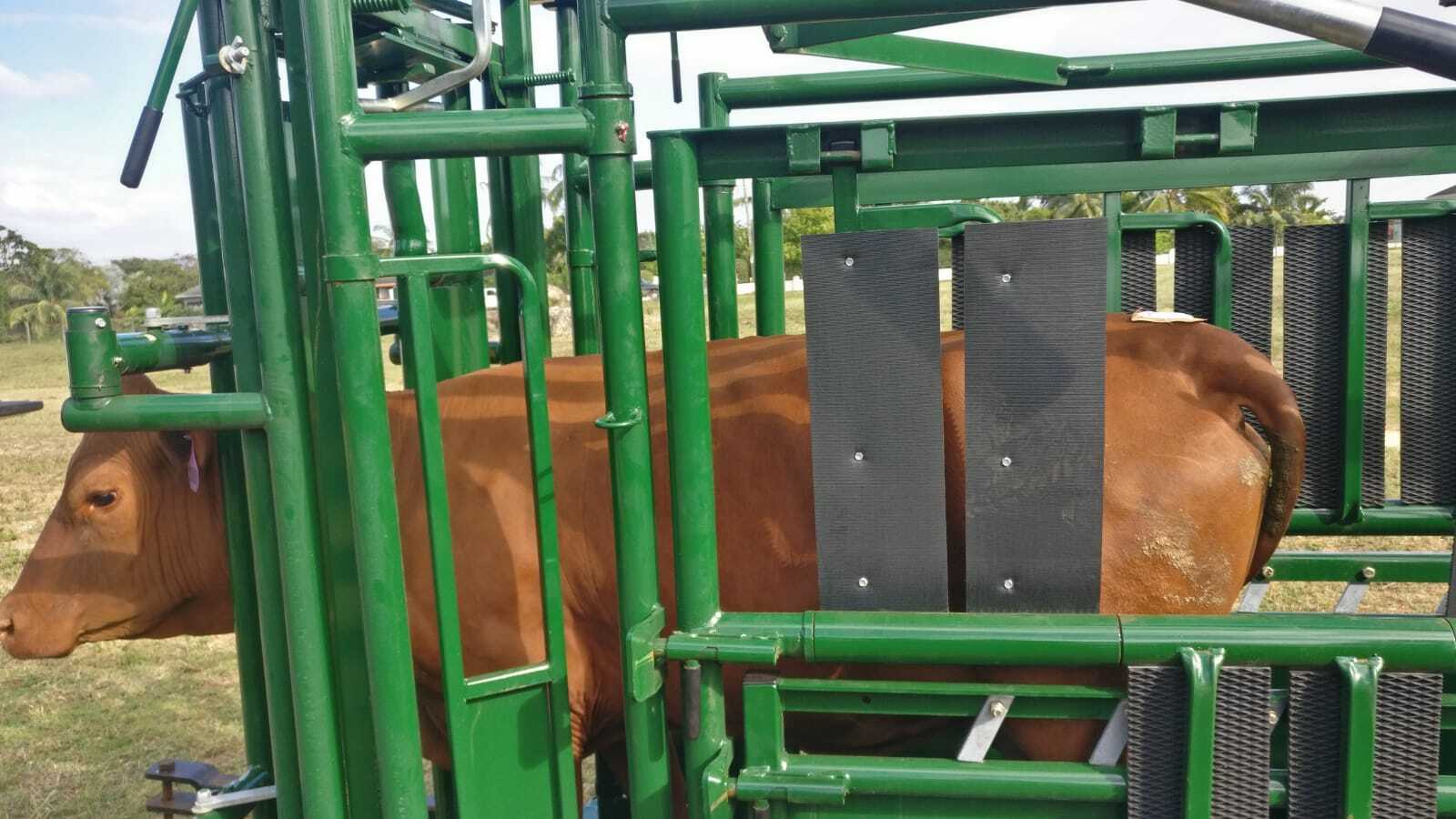

Smooth open/close blinder drop down inspection gates both sides

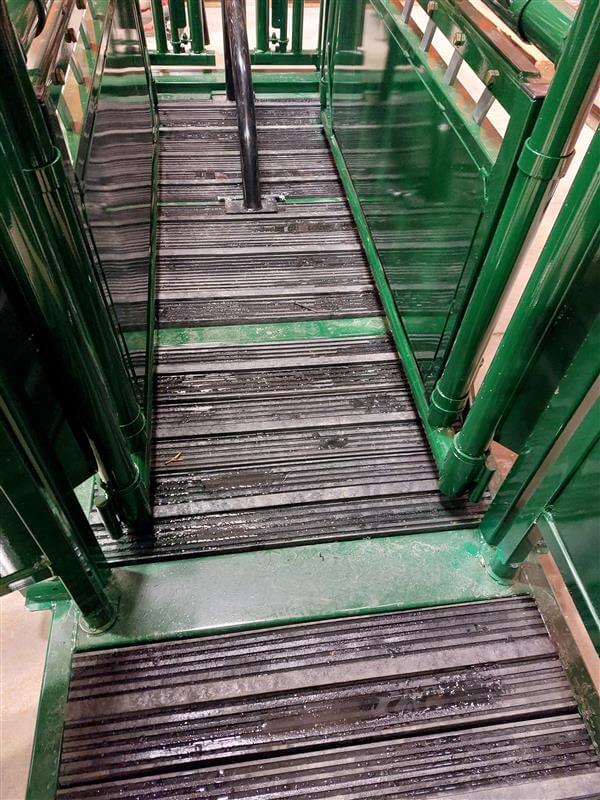

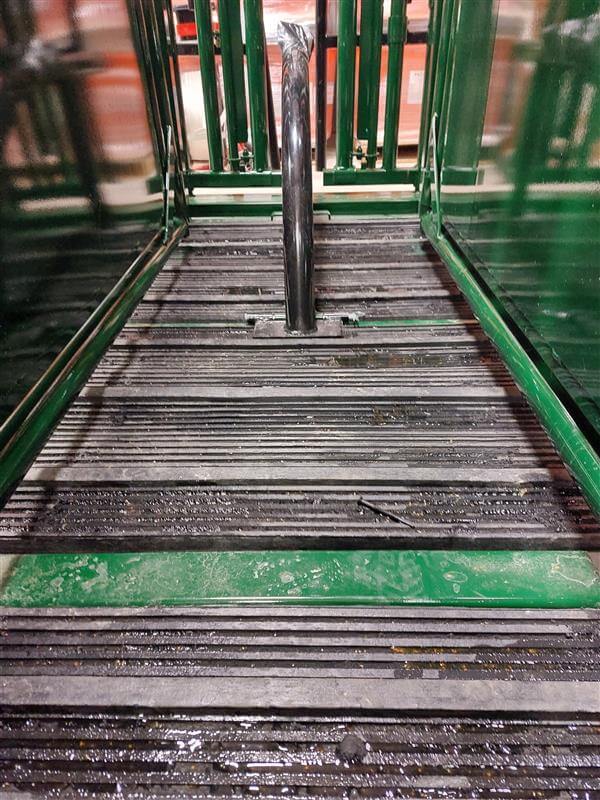

NEW RUBBER floor-provides comfort and anti-slip
Sternum bar included

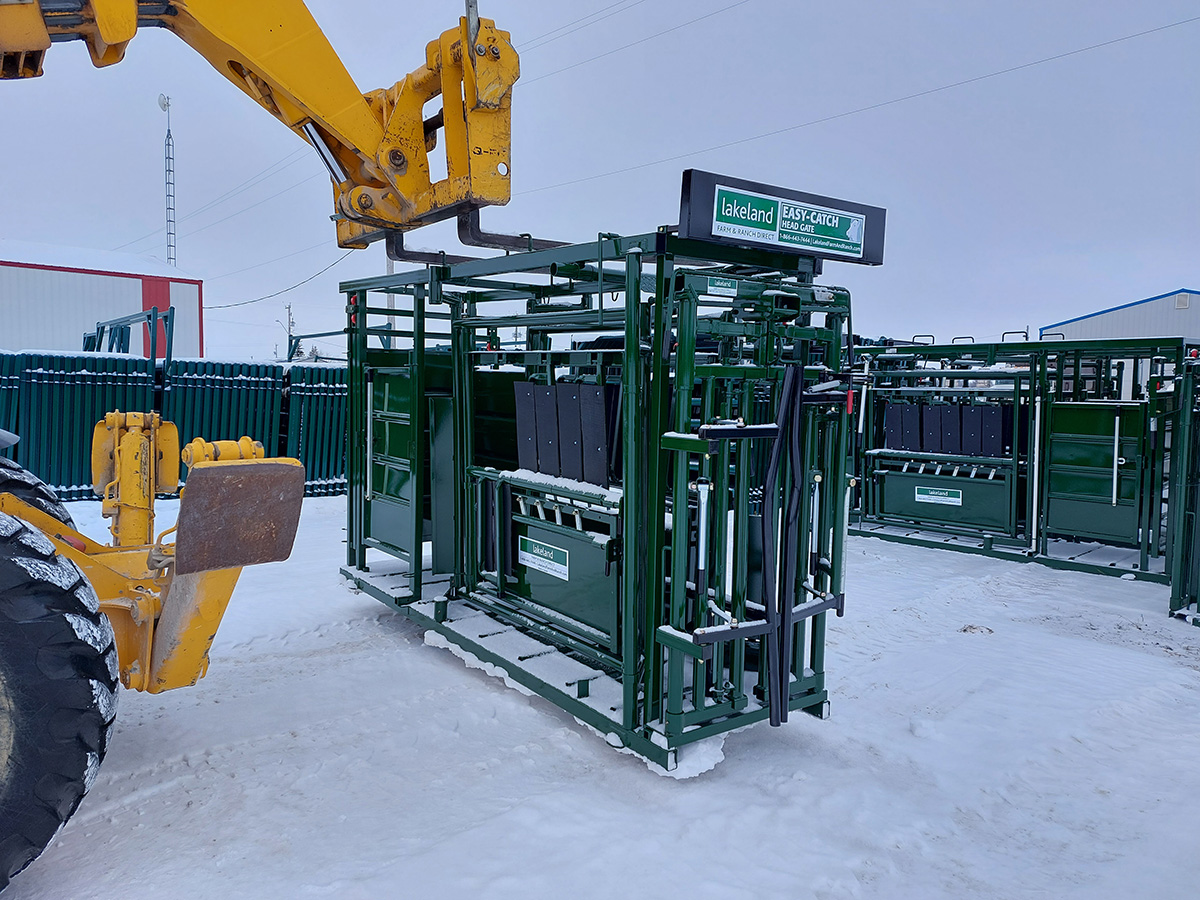

Fork Targets on top frame for easy moving/transport
Overall Dimensions: 12’ long (including neck extenders) x 42’’ wide
Weight 2000lbs
Height in vet cage: 75’’
Distance from floor of chute to ratchets: 27’’-30’’
81" from ground to top of main frame
Add 4" for fork hoops on top
Overall height with decal plate on front 88"
20" high sternum bar

The Deluxe Easy Catch Cattle Squeeze Chute does more than get the job done—it stands shoulder to shoulder with you every day on the ranch. Built for both handler and animal, it delivers unmatched safety, efficiency, and durability every time you put it to work.

Lakeland Videos

FAQs

How much does the Lakeland Easy Catch Squeeze Chute weigh and how long is it internally?

The Easy Catch Squeeze Chute weighs in at just under 2,000 pounds, making it one of the heavier manual squeeze chutes out there. Pounds for dollar, it’s one of the highest value chutes as well. There’s 11 feet of internal space from behind the headgate to the rolling door at the rear of the integrated vet cage.

Is the Lakeland Easy Catch Squeeze Chute self-catch or manual?

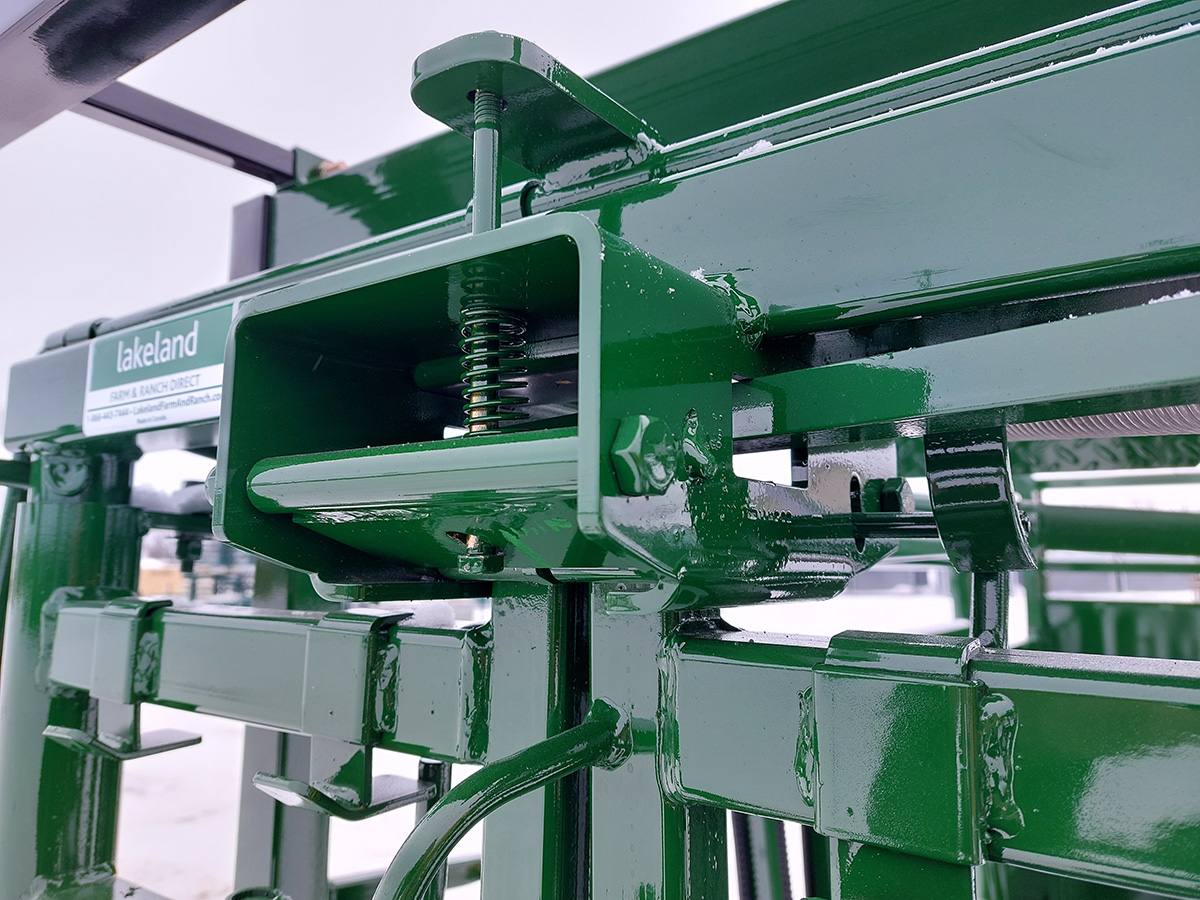

It has the unique auto-reset spring-cushioned headgate. This means it is designed to process animals quickly and safely. Simply adjust the stanchions and set the headgate back against the adjustable limiter chain. The operator can now be outside the cows “flight zone,” opening the heavy-duty rolling door to let the cow into the squeeze chute and allowing the animal to move into the headgate, closing the stanchions on their shoulders. On release, the headgate automatically moves back and rests ready for the next animal.

How does the heavy-duty rolling door compare with a bi-fold or guillotine gate?

This is largely a matter of opinion, but in our experience, the smooth rolling door glides back and forth so easily that a child can operate it and cut off an animal easily. Other manufacturers’ options, such as a bi-fold, can sometimes allow the animal to put their nose in the middle gap and force it open. As for guillotine gates, they are heavy, cumbersome and potentially dangerous if they let go.

What’s the neck extender like?

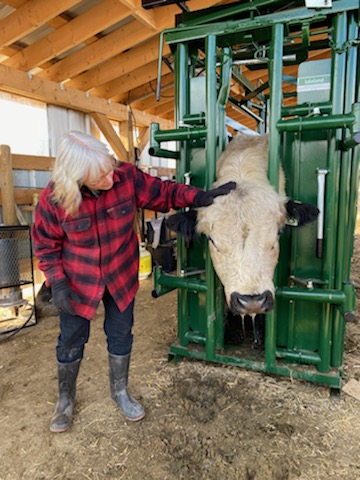

It’s a set of vertical bars that are adjustable in and out that protrude from the headgate but adjust and move with the headgate so that they don’t encroach on the flight zone of the cow or interfere with the headgate. They effectively catch the head behind the ears, while the main headgate stanchions close in front of the shoulders, thus exposing a large area of neck for injections.

Do the sides of the Lakeland Easy Catch Squeeze Chute open?

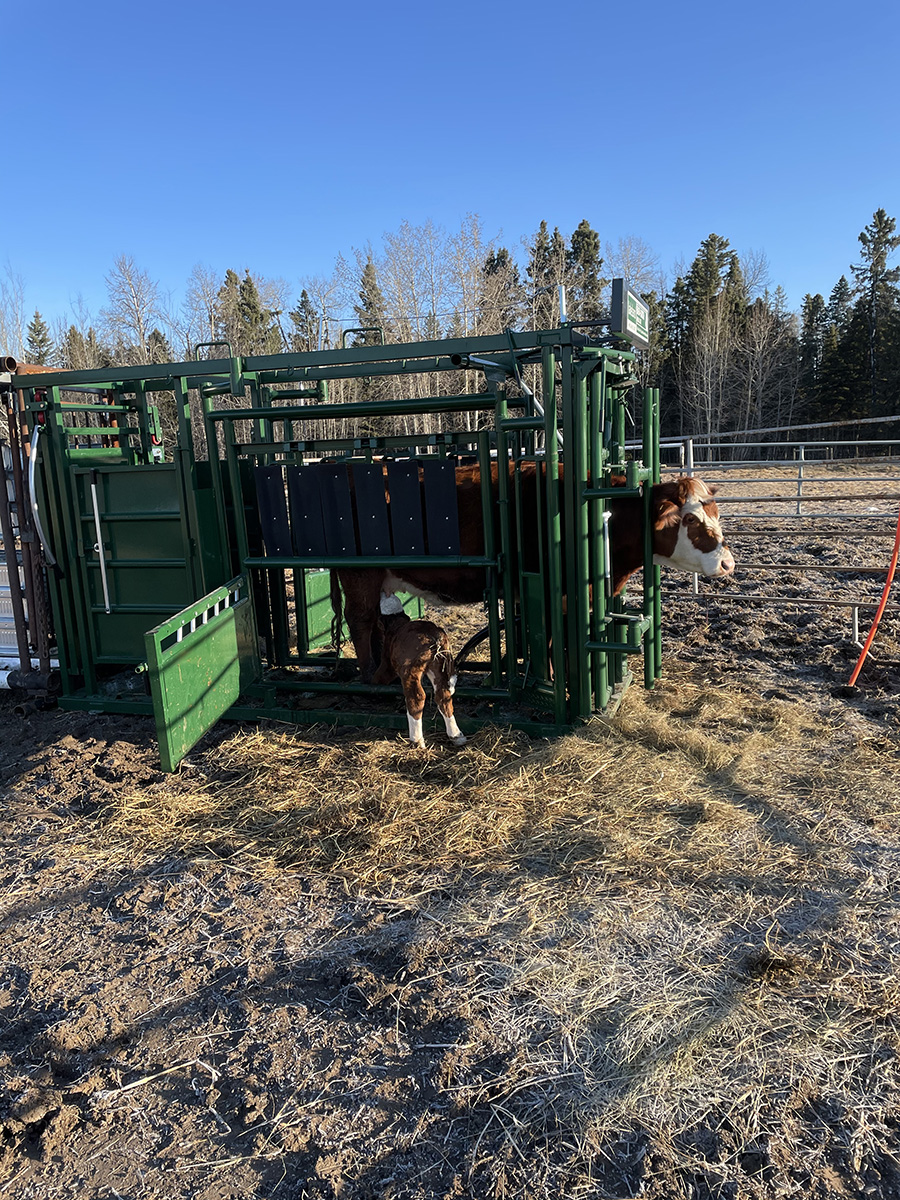

Yes. They fully open up on both sides and split top and bottom. This means that the top can be left shut and the bottom opened up to allow a calf to suck or for work to be done on the hooves, etc. In addition, there is an access door immediately behind the headgate on both sides and three drop down inspection gates on each side of the upper portions, making it ideal for branding.

Does the Lakeland Easy Catch Squeeze Chute squeeze from both sides?

Yes, with one simple and smooth lever operation, the parallel axis sides narrow down from full width of 30 inches to 12 inches for running calves

What if I want to move the Easy Catch Squeeze Chute around or to a different location?

As a solid one-piece unit, it has fork loops welded to the top frame, so the squeeze chute can be easily moved around with a loader or skid steer. You can load it easily onto a trailer or you can choose to purchase the A-frame trailer designed specifically to take the Easy Catch Squeeze Chute.
