European Horse Stalls | The Classic Collection

Models

The Classic Collection offers four European horse stall front designs, allowing you to choose the balance of wood detailing, openness, and visibility that complements your horses and your barn.

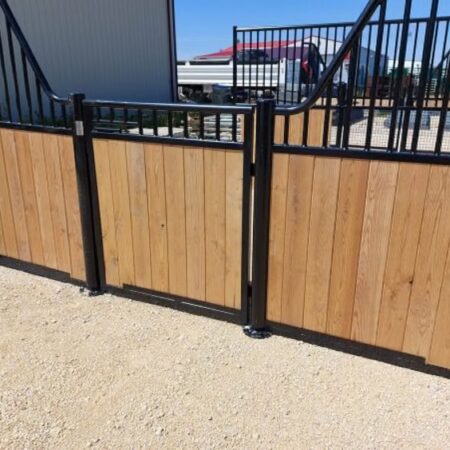

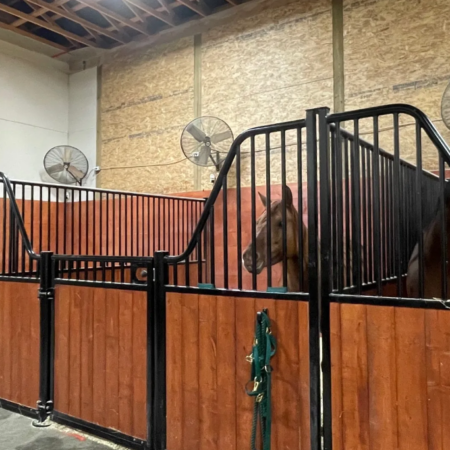

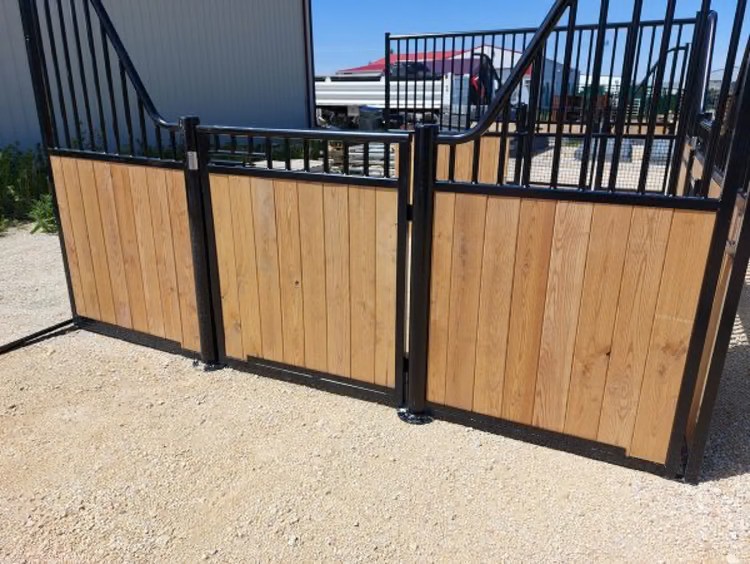

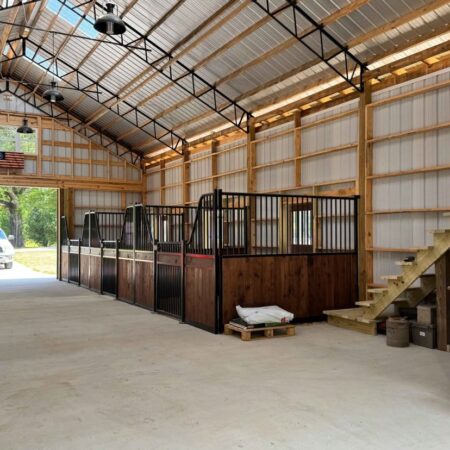

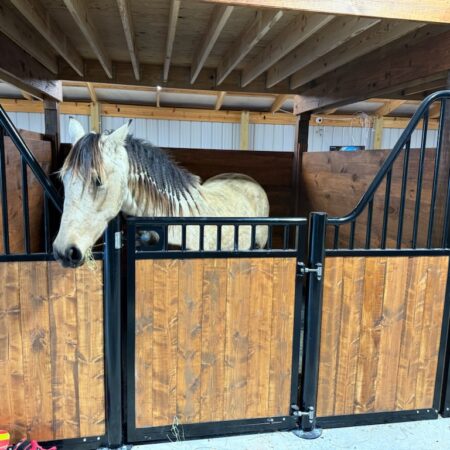

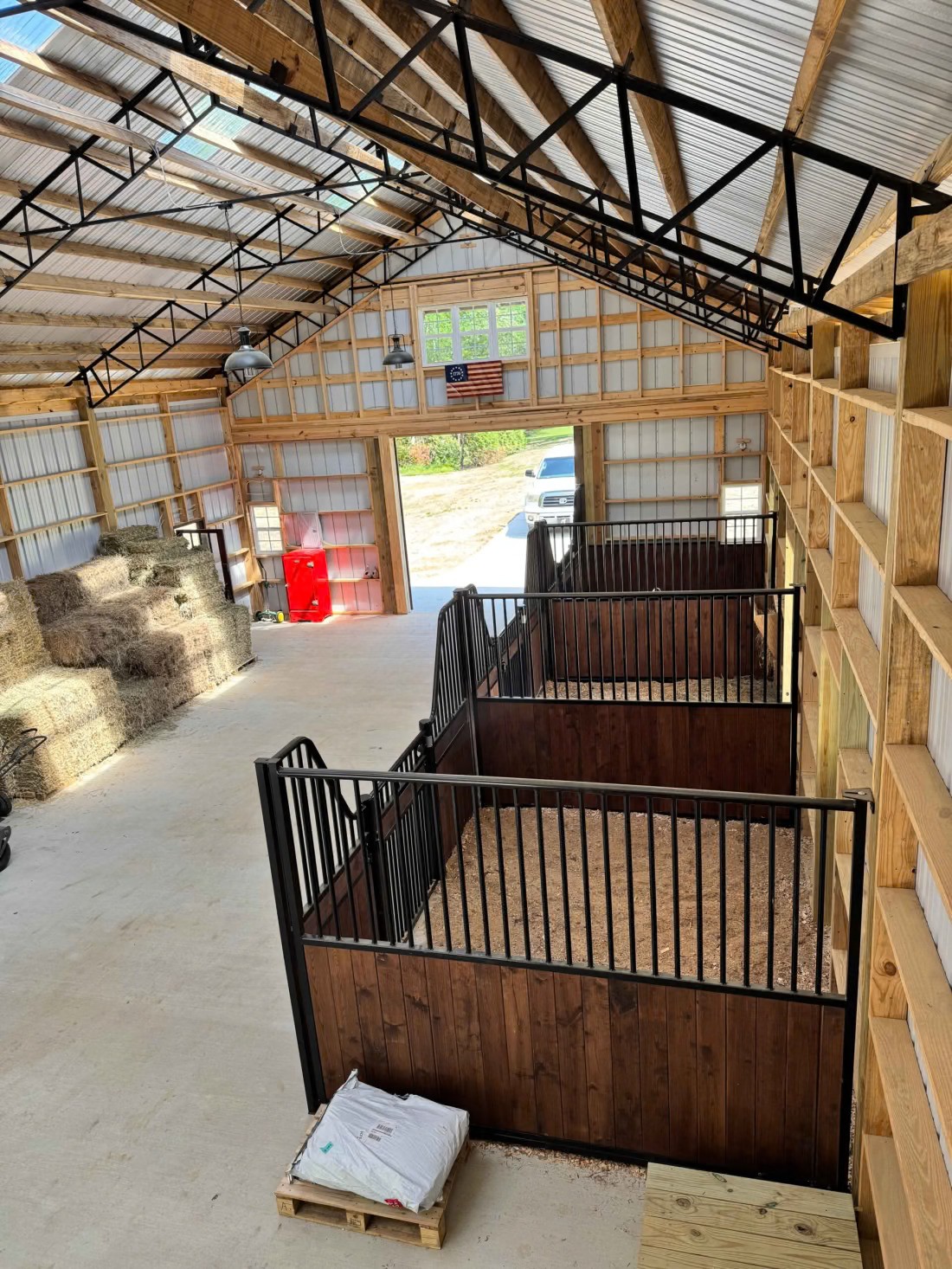

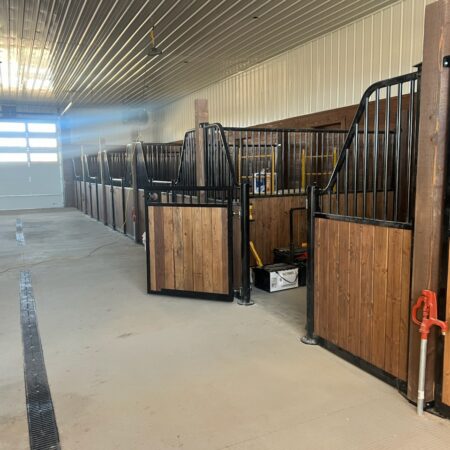

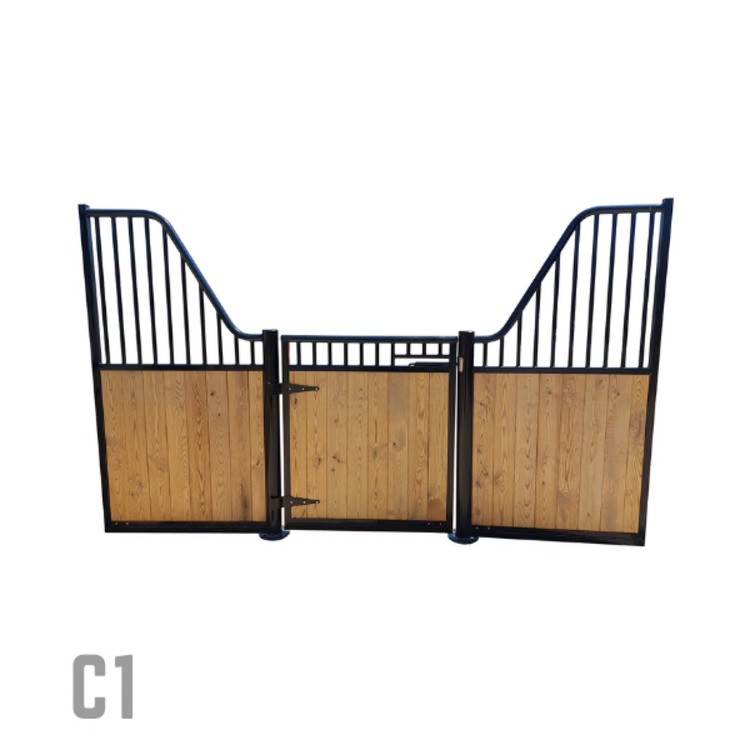

C1 – Classic Wood Stall Front

Vertical wood panels across the lower sections and centre door create a clean, traditional appearance. The natural wood contrasts with the curved black steel framework, giving these horse stall fronts an understated, timeless character.

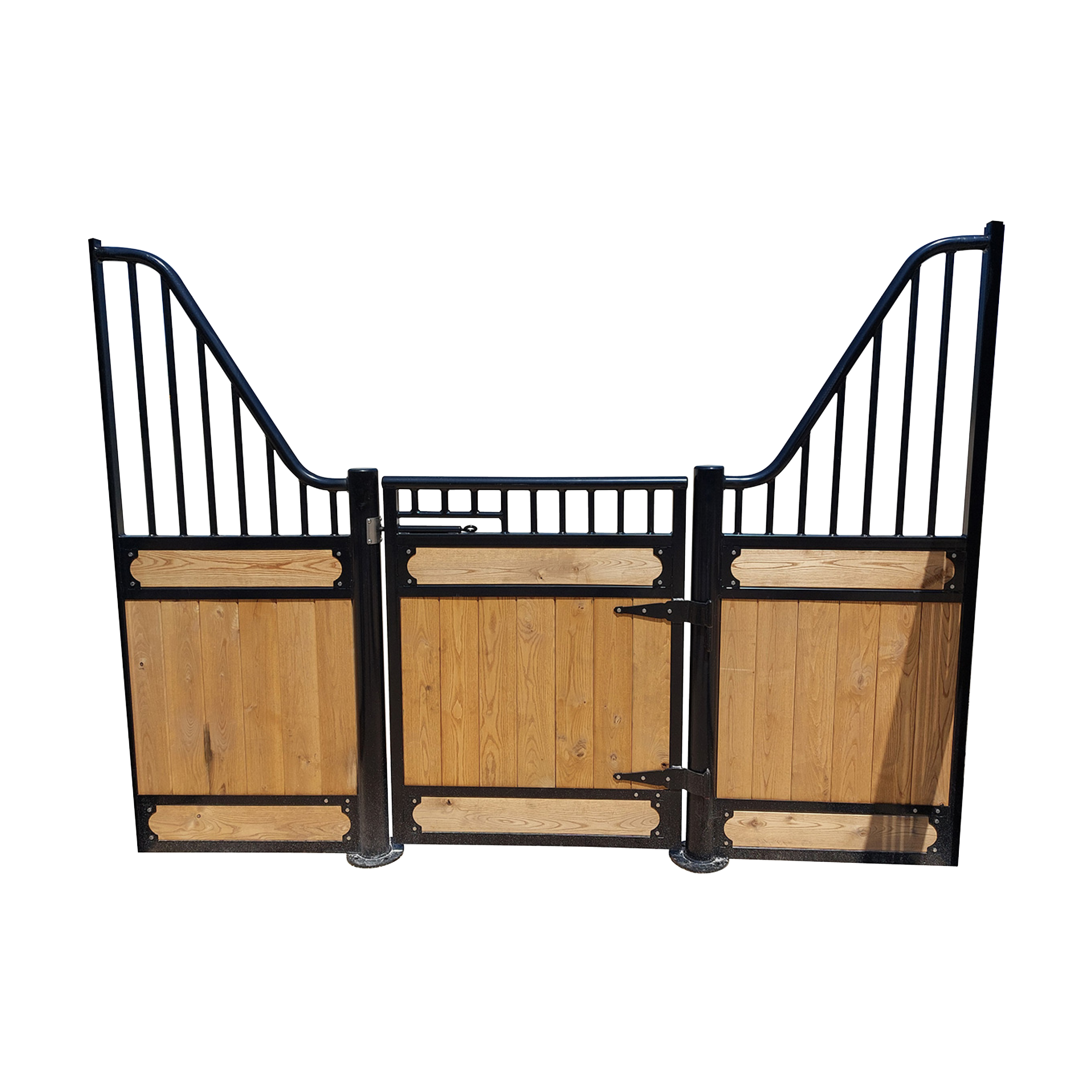

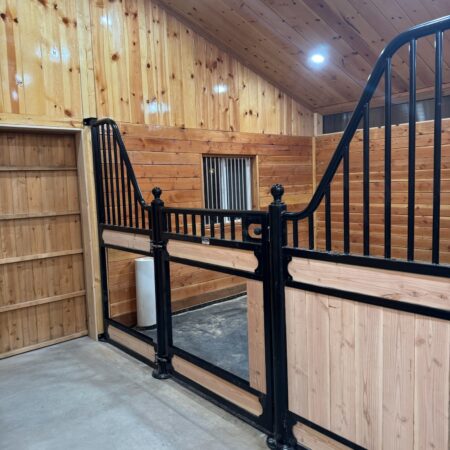

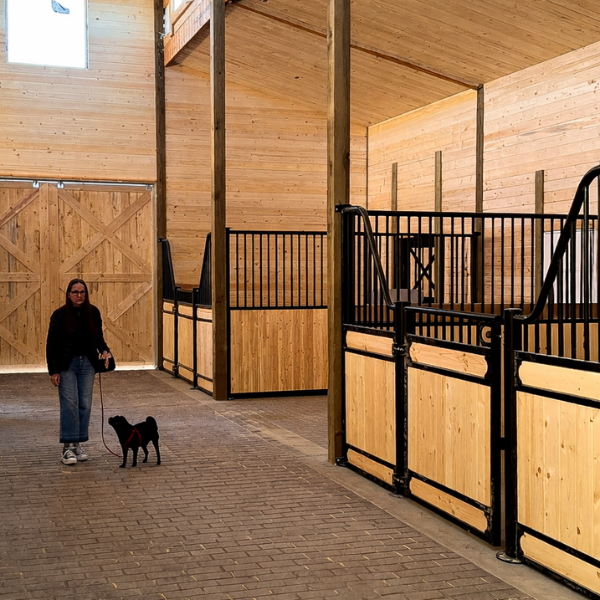

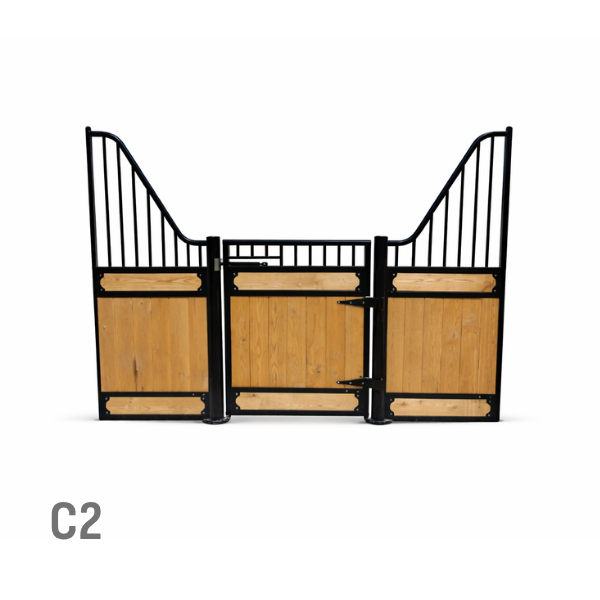

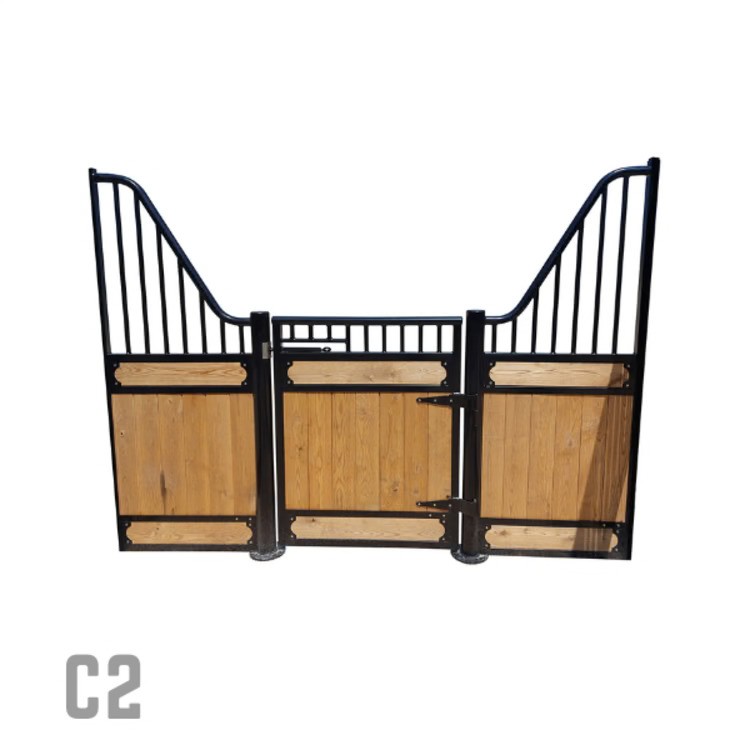

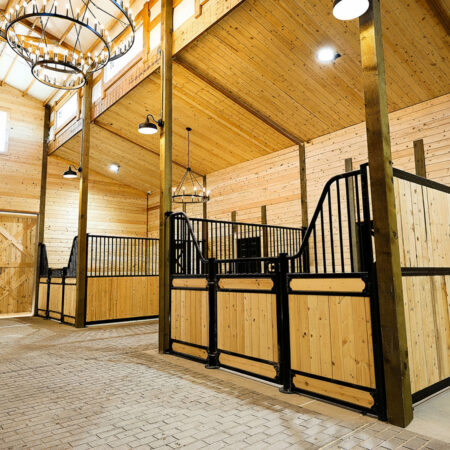

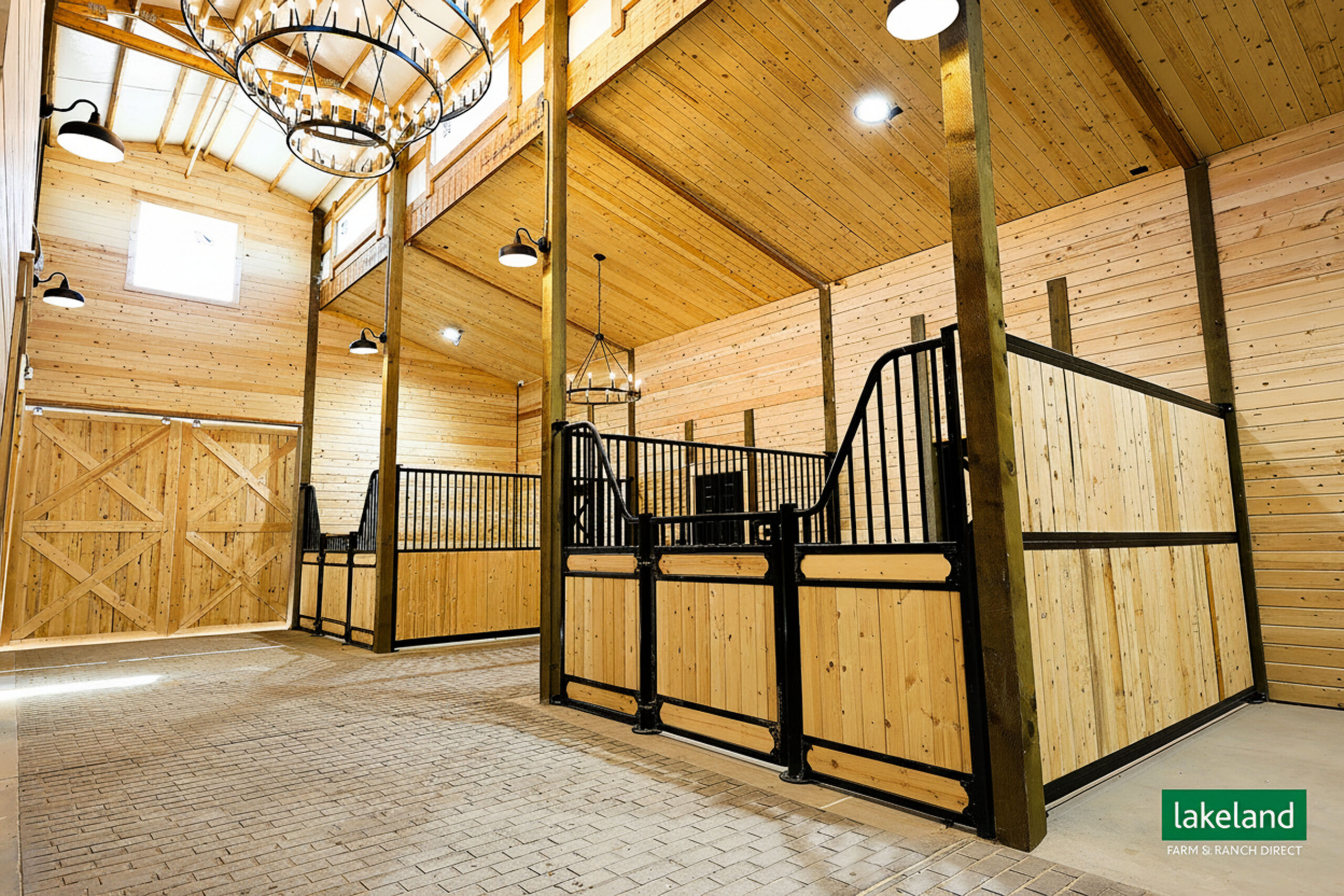

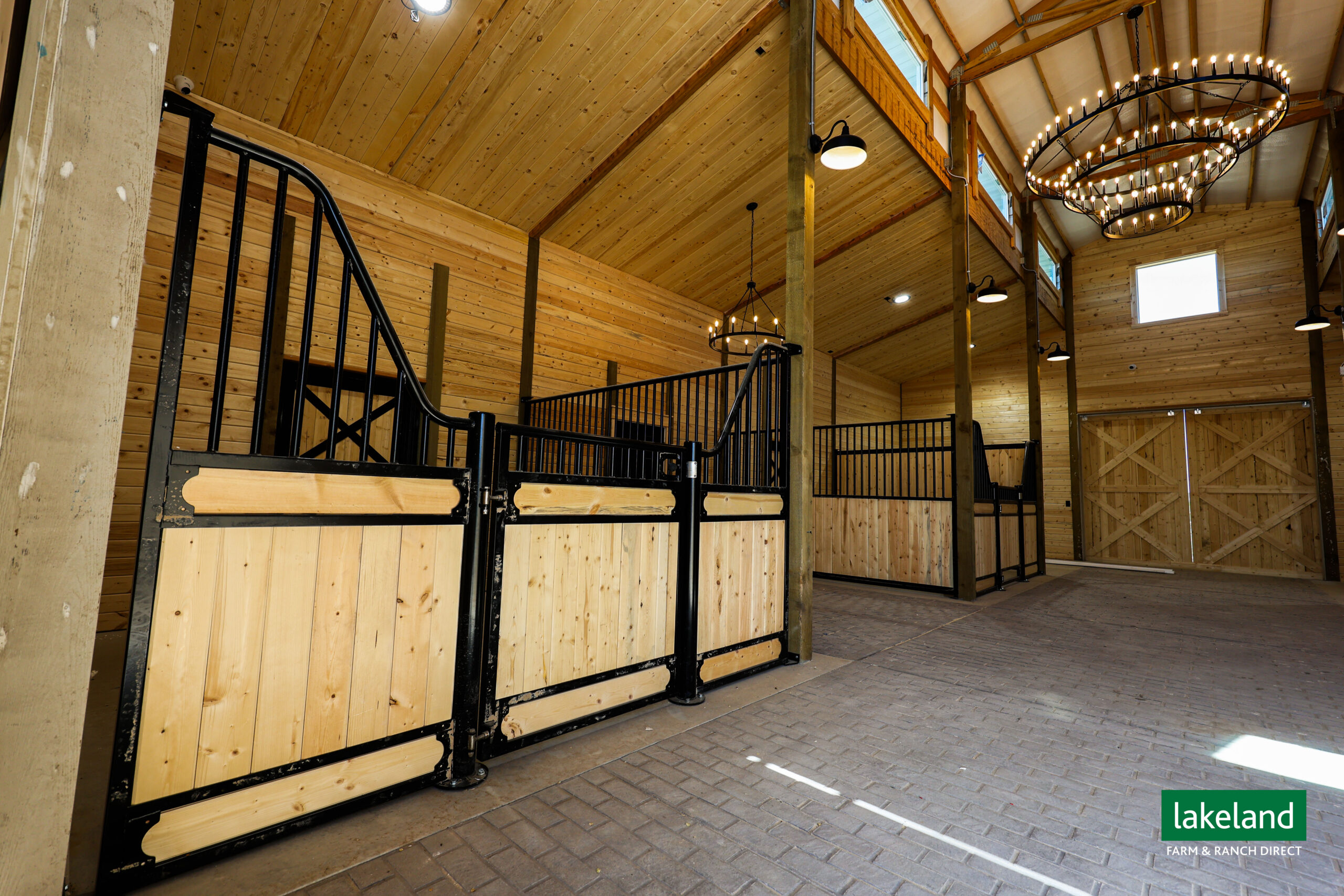

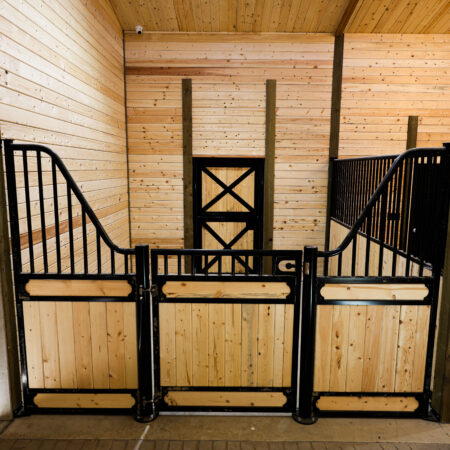

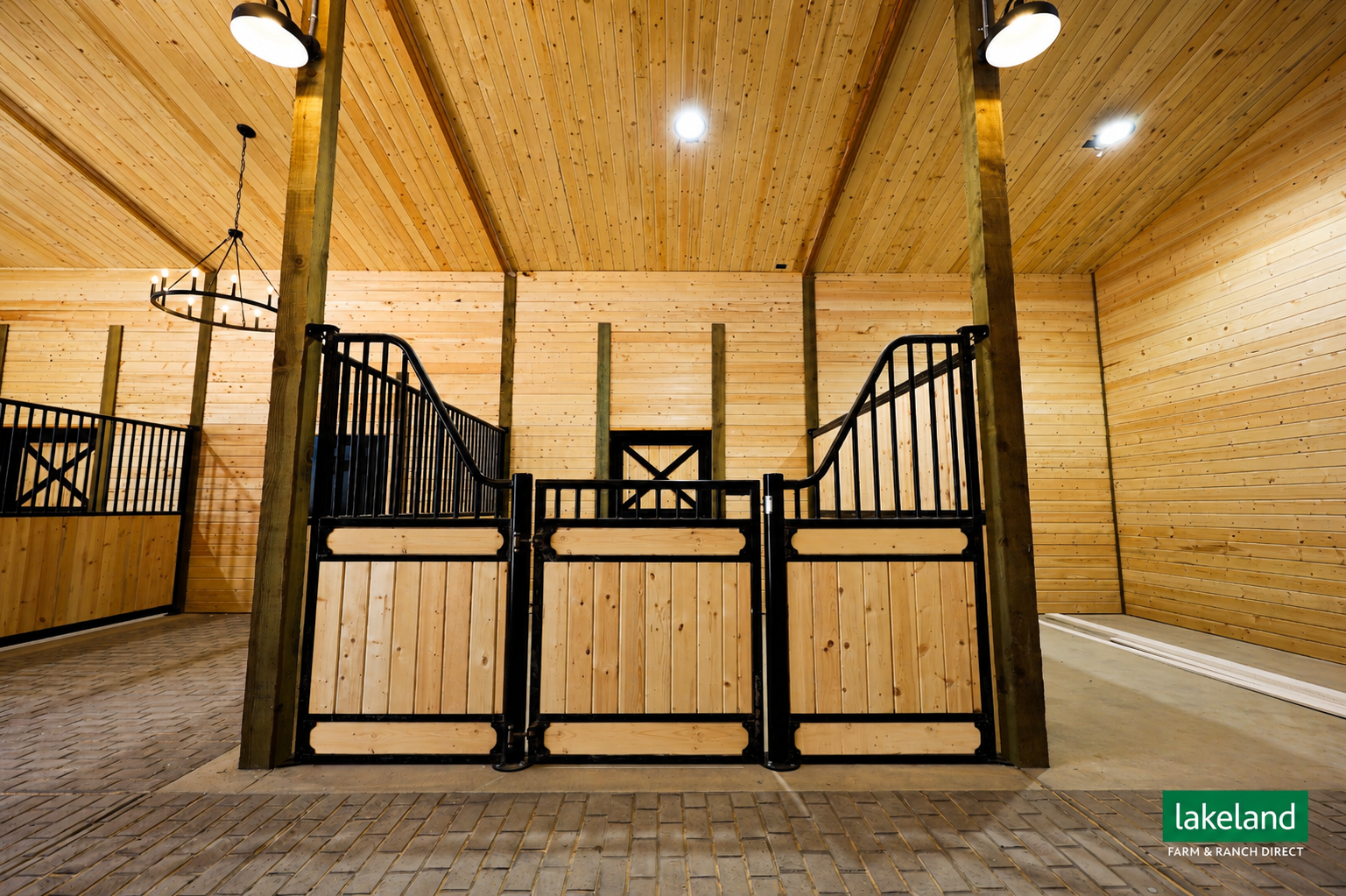

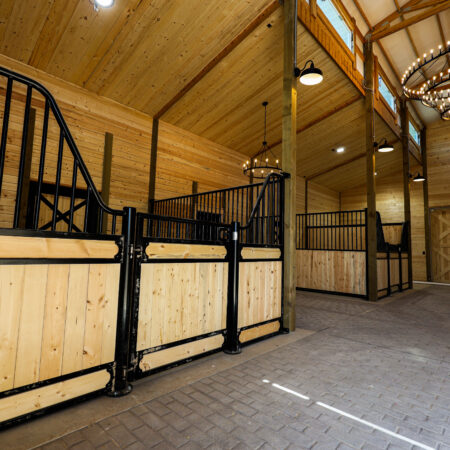

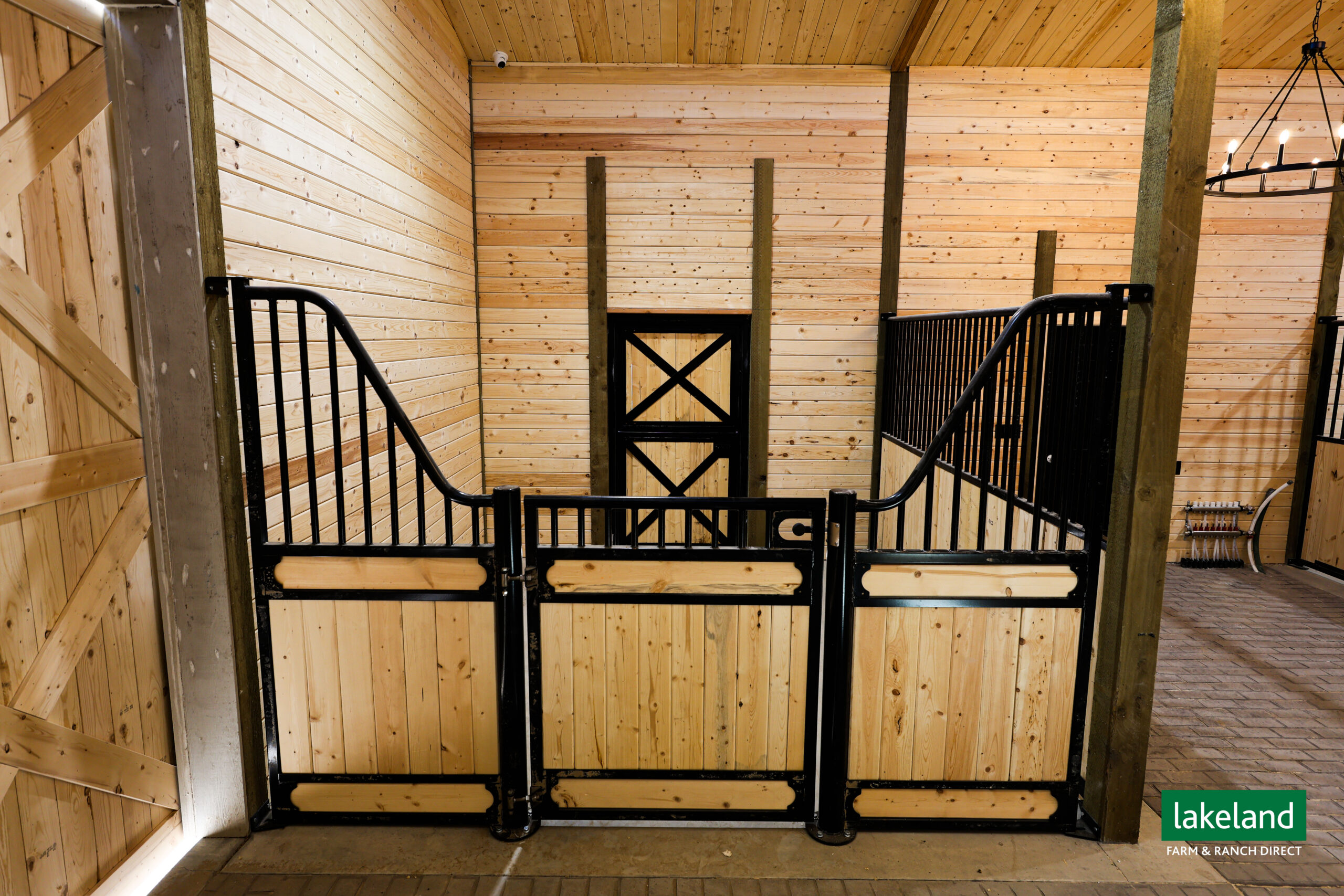

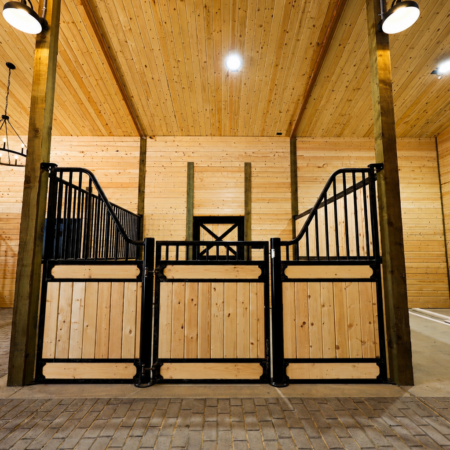

C2 – Wood Stall Front with Framed Accent Rails

Vertical wood panels are framed by horizontal wood accents at the top and bottom of the side sections and centre door. This added detailing creates a layered, substantial appearance while preserving the Classic Collection’s balanced proportions.

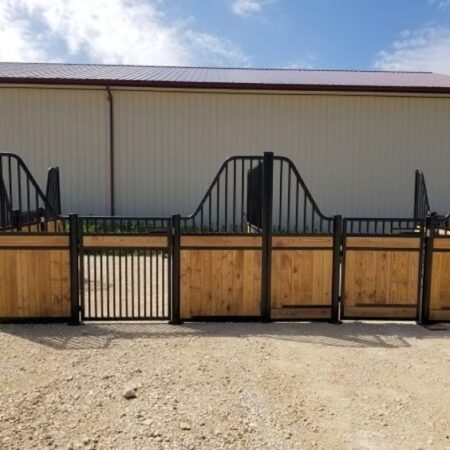

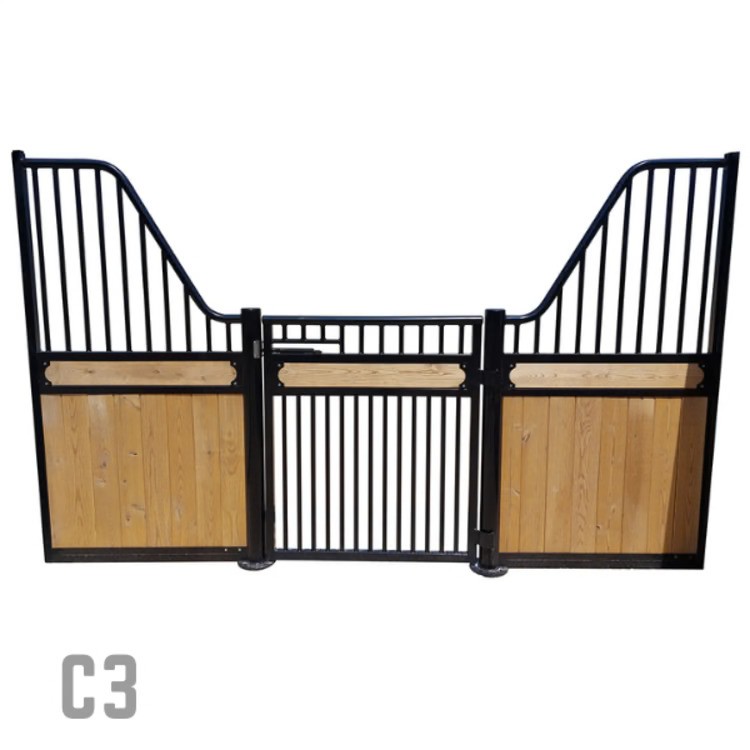

C3 – Open-Bar Centre Door

An open-bar centre door pairs with vertical wood side panels and horizontal wood accents across the top of the lower sections. This configuration adds visibility and airflow through the doorway while retaining the warmth and privacy of wood-filled sides.

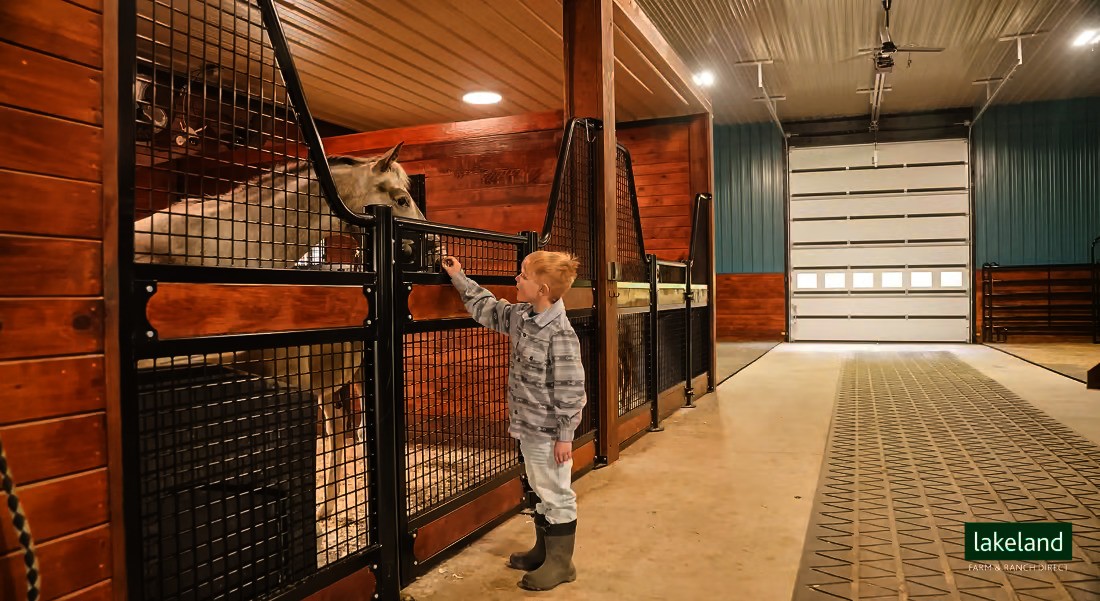

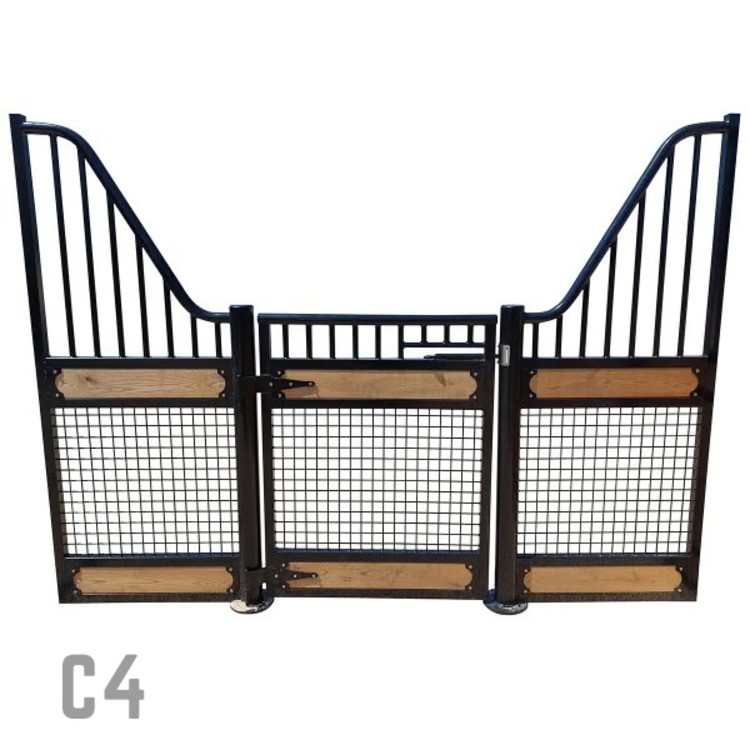

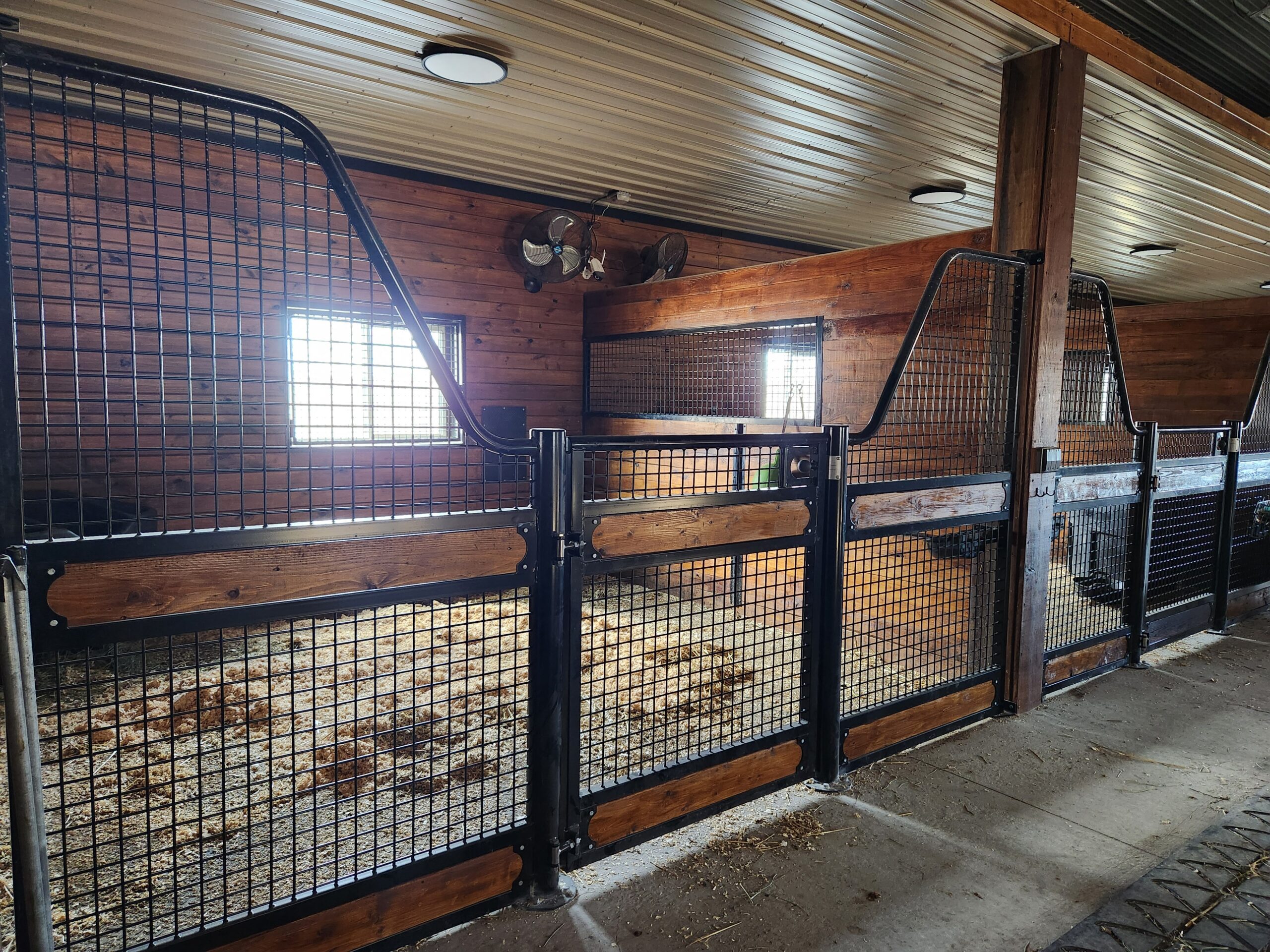

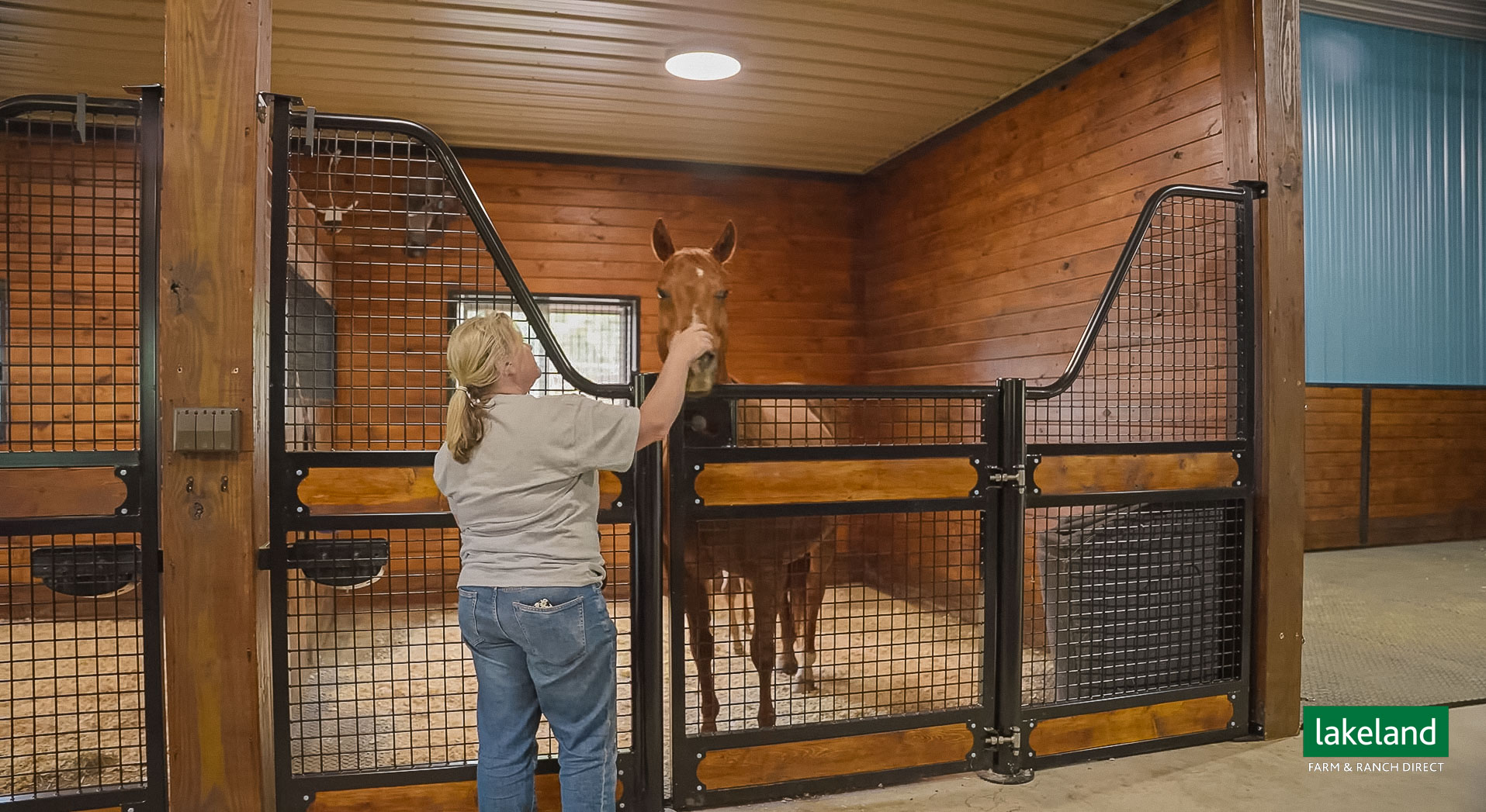

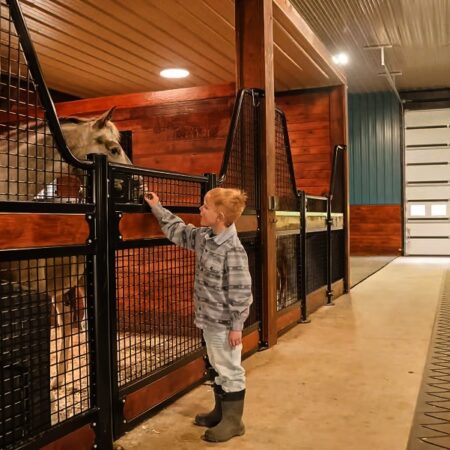

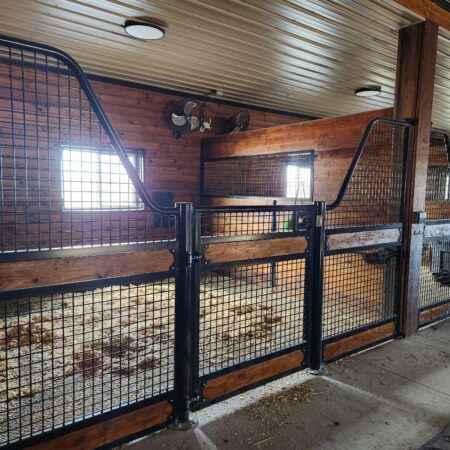

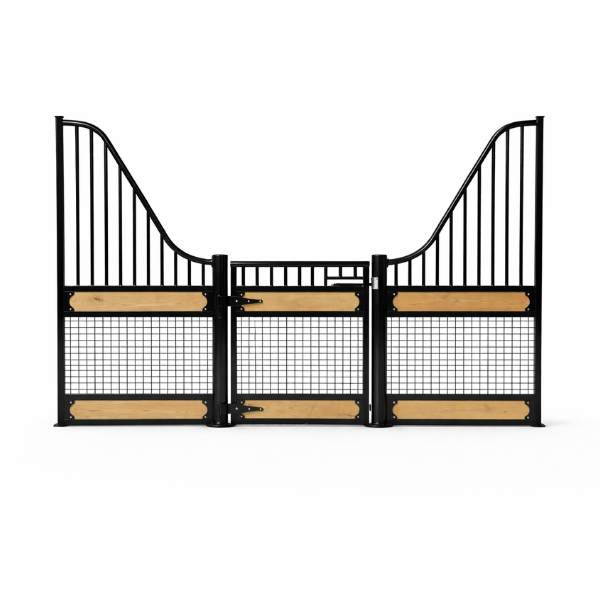

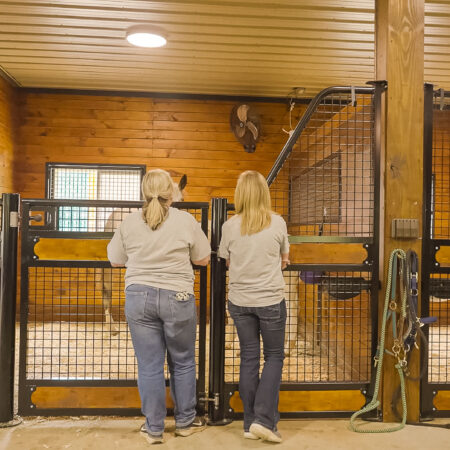

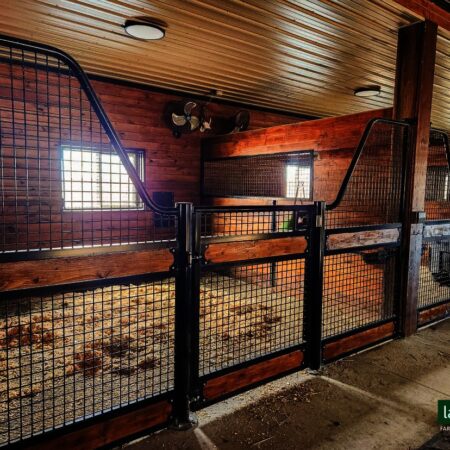

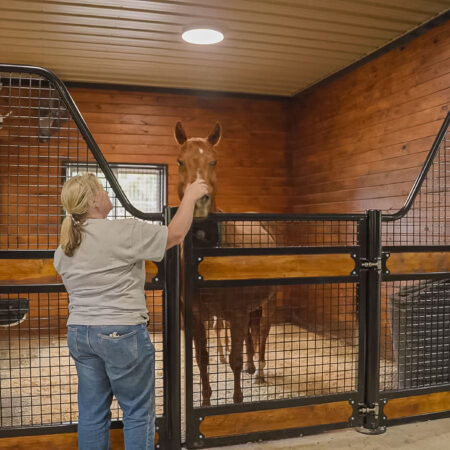

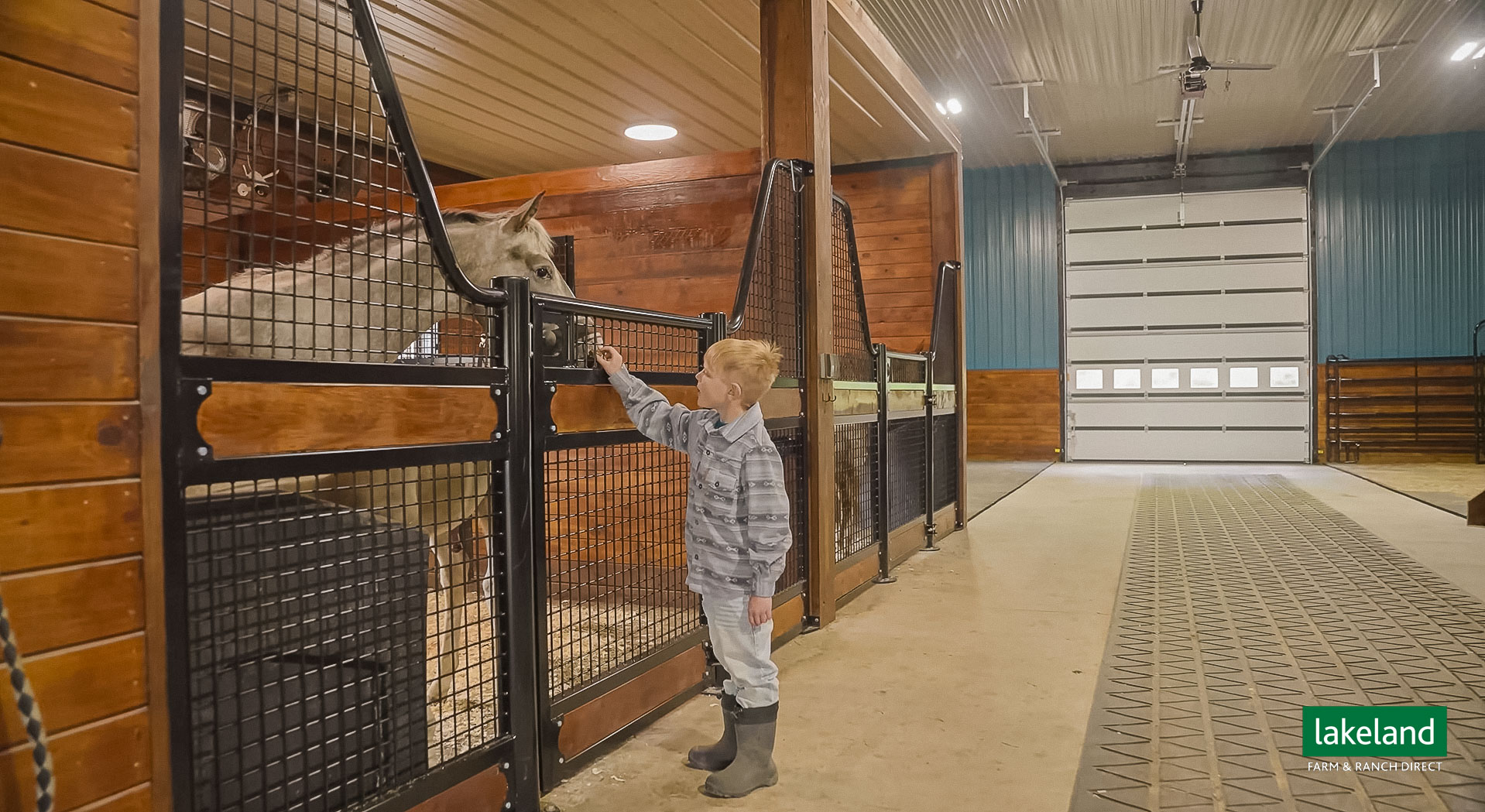

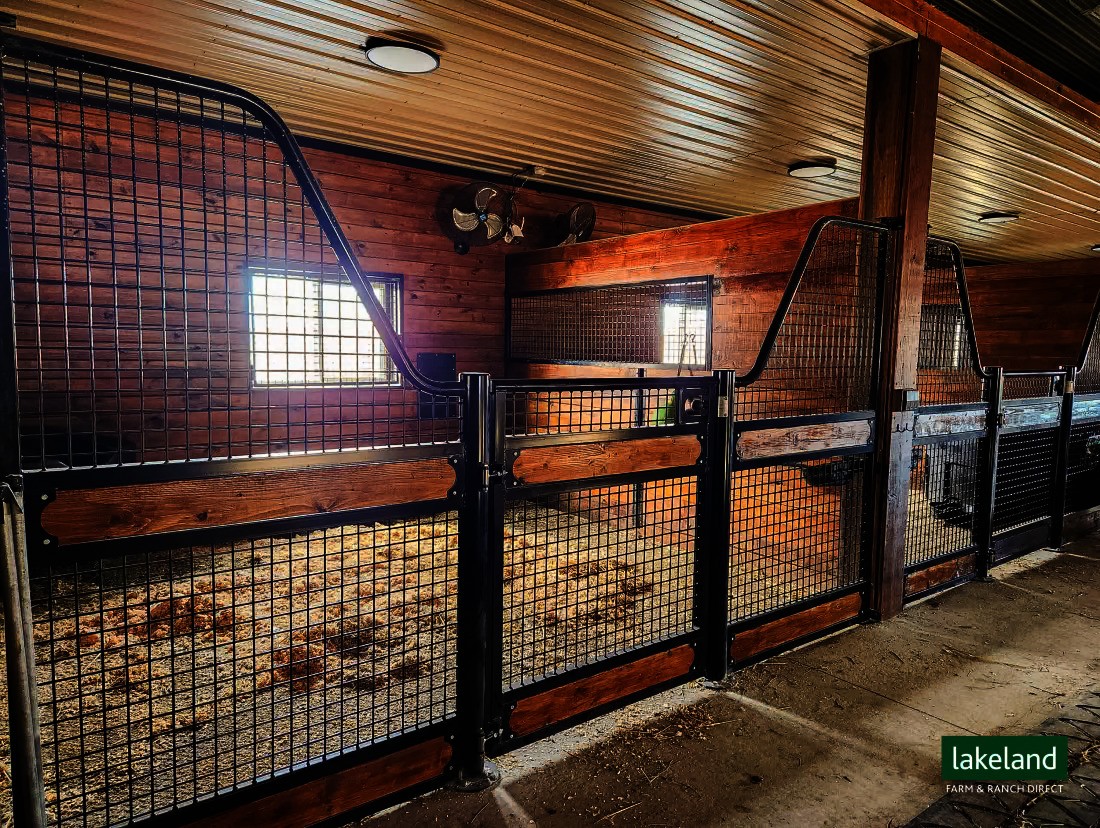

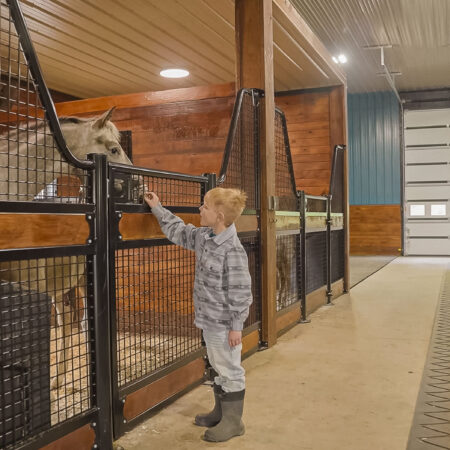

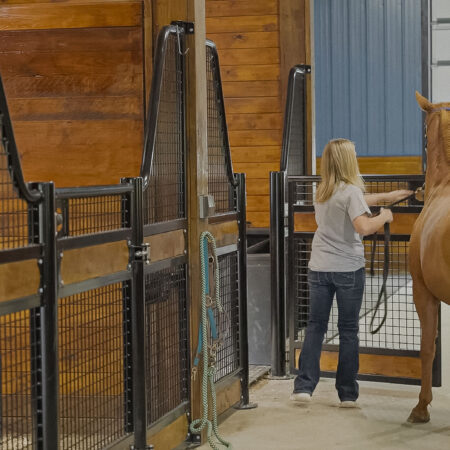

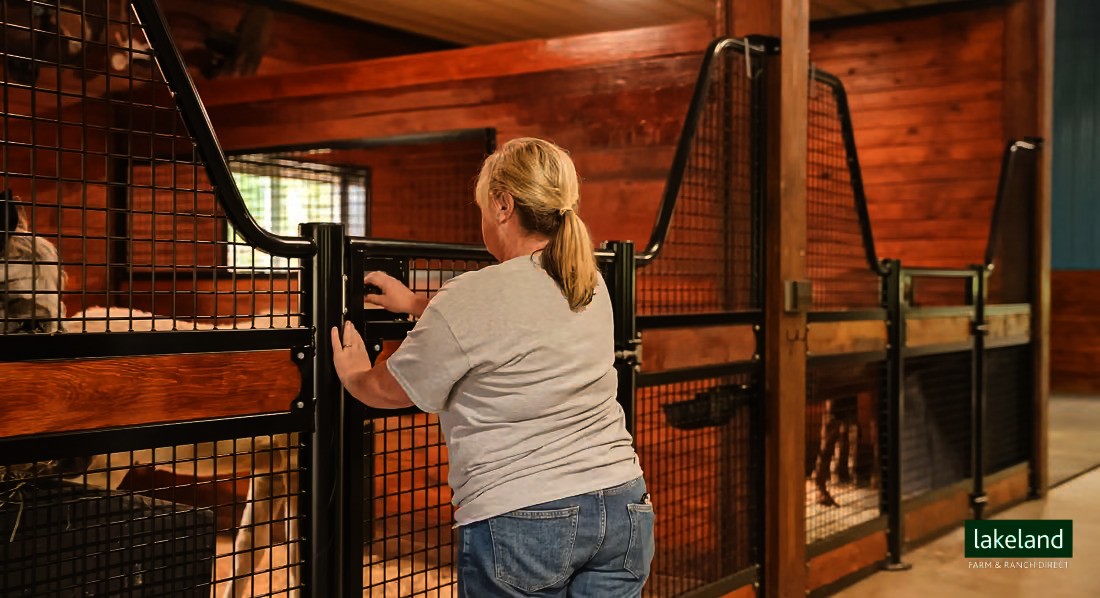

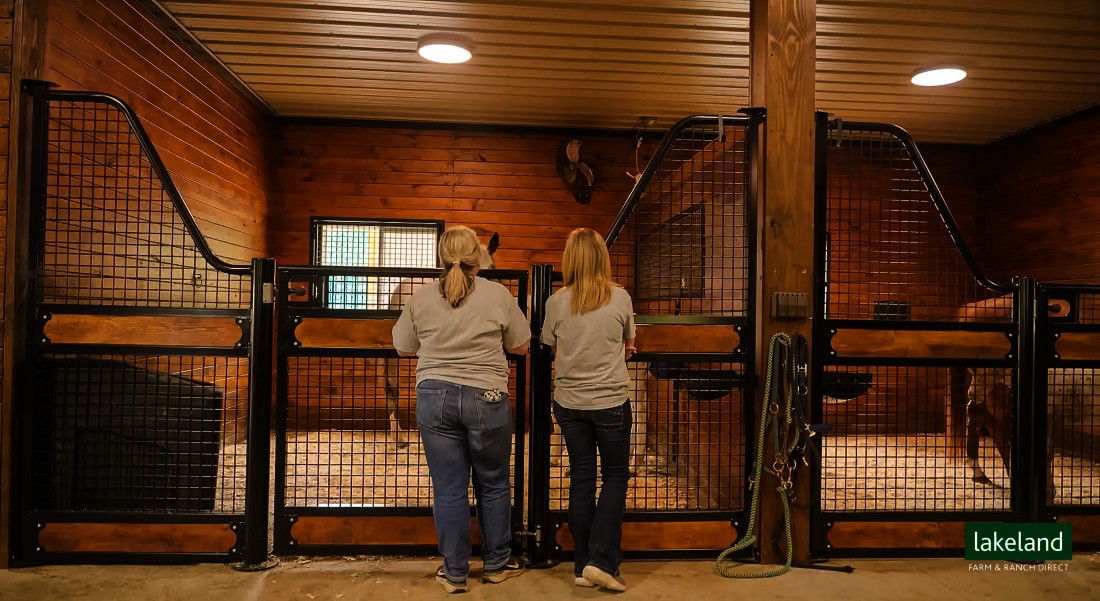

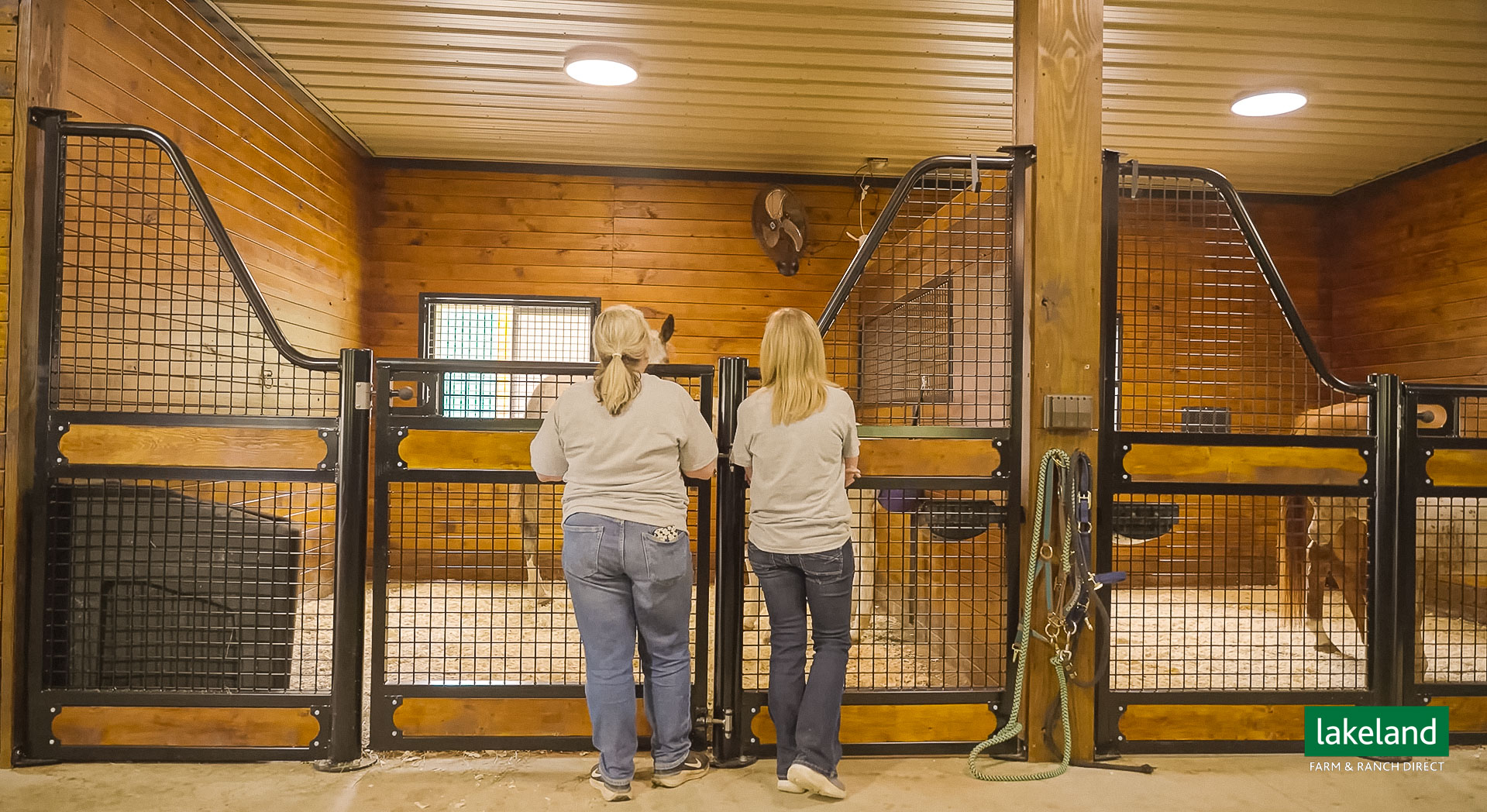

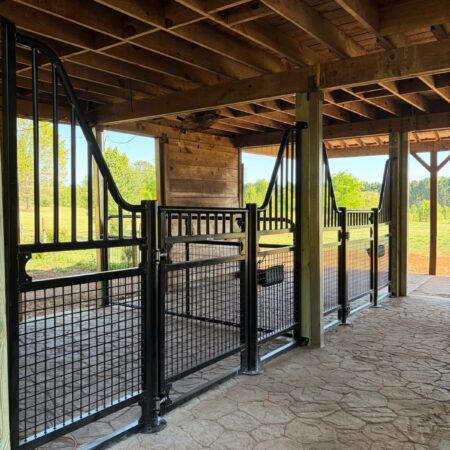

C4 – Full Mesh Stall Front

Mesh panels extend across the lower side sections and centre door, framed by horizontal wood accents above and below. The open configuration supports airflow and visibility, while the wood detailing brings warmth to the collection’s refined steel profile.

Key Features:

• Durable 14-gauge steel frame with long-lasting powder-coated finish

• Full-swing horse stall doors improve access during chores

• Elegant curves define the look of modern european stall fronts

• Optional v-grills and feed doors enhance airflow and usability

• Compatible with Lakeland horse stalls and stall dividers

• Ideal for high-end facilities, private barns, and equestrian center

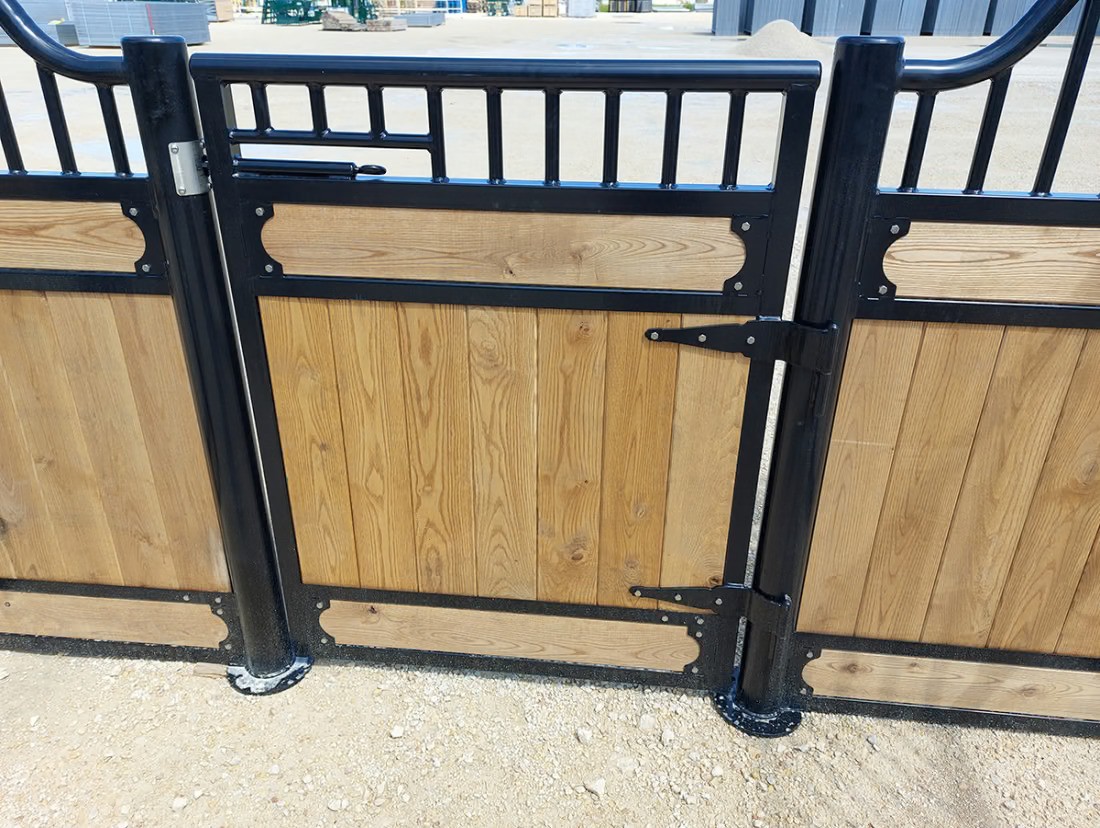

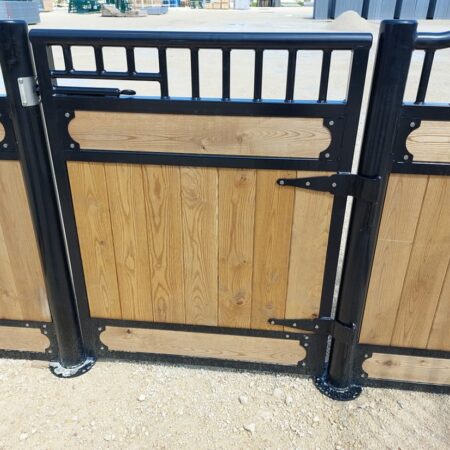

• 46’’ W Hinged Door opening (between 4’’ round posts)

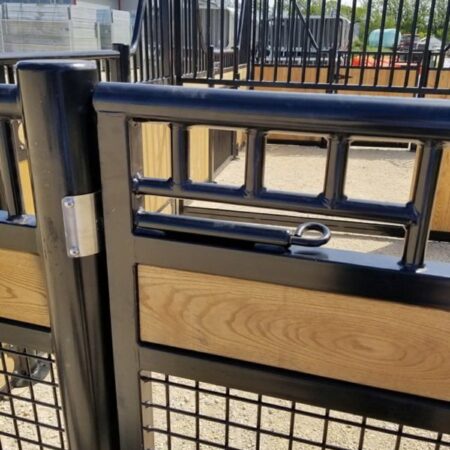

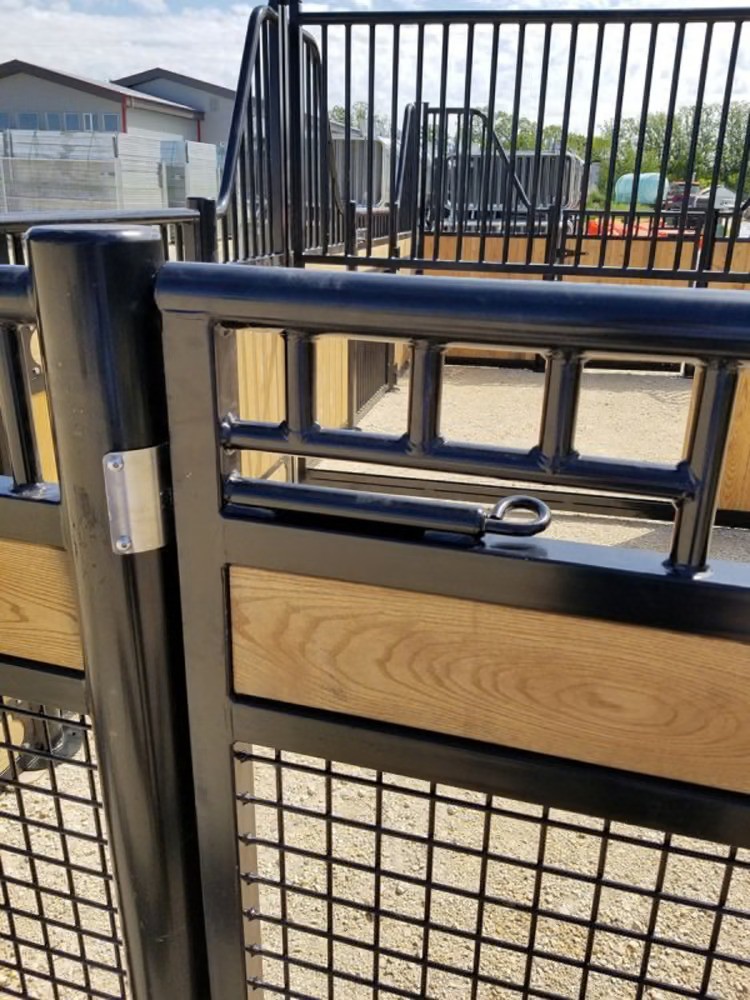

• Heavy Duty Spring Latch welded onto Door – accessible from both sides

• Heavy Duty Stainless Steel adjustable hinges on 4’’ posts

• 4” diameter round posts on each side of door – 54” high, 7-gauge steel

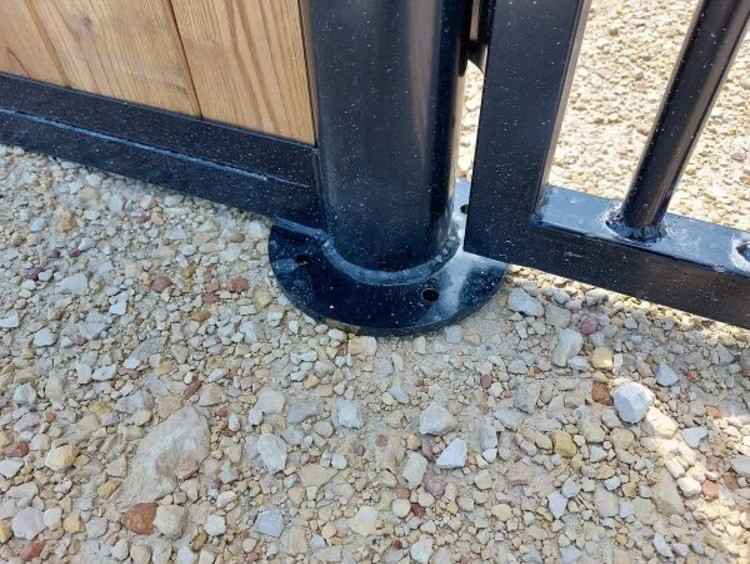

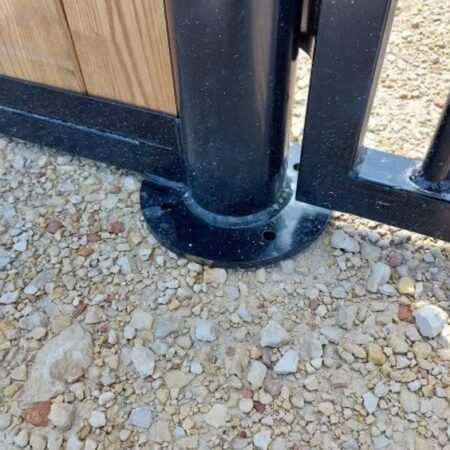

• 4” posts have fully welded cap on top and an 8” round 3/8” thick floor plate on bottom with 4x ½” pre-drilled holes to secure to floor

• 1 ¾’’ x 1 ¾’’ Square Tube End Frames – 12-gauge steel

• 1 ¾’’ round tube for top curved piece – 11-gauge steel

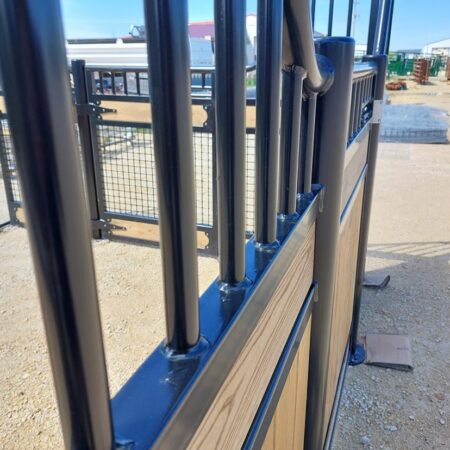

• 1’’ round tube for vertical spindle bars

• 3″ spacing between vertical spindle bars

• Spindles are 36’’H

• “C” channel welded to frame for vertical boards – 12-gauge

• Can mount horse stall fronts to wall/post/divider with 2-Way, 3-Way or Wall Mount Connectors

• Available in 10ft, 12ft & 14ft lengths

Dimensions:

• 10′ Front Overall Dimensions: 115”L x 84” H (this is to allow for the connectors on each end)
• 12’ Front Overall Dimensions: 139.5″ L x 84″ H (this is to allow for the connectors on each end)
• 14′ Front Overall Dimensions: 163.5”L x 84”H (this is to allow for the connectors on each end)

Optional Upgrades:

• Decorative finial balls for tops of stall fronts
• Feed Swing door with hinges and hardware
• Premium Horse Stall Mats

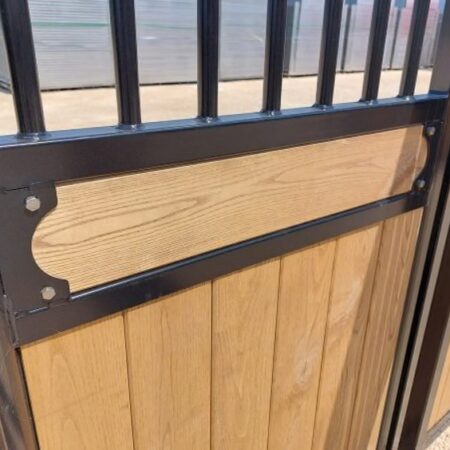

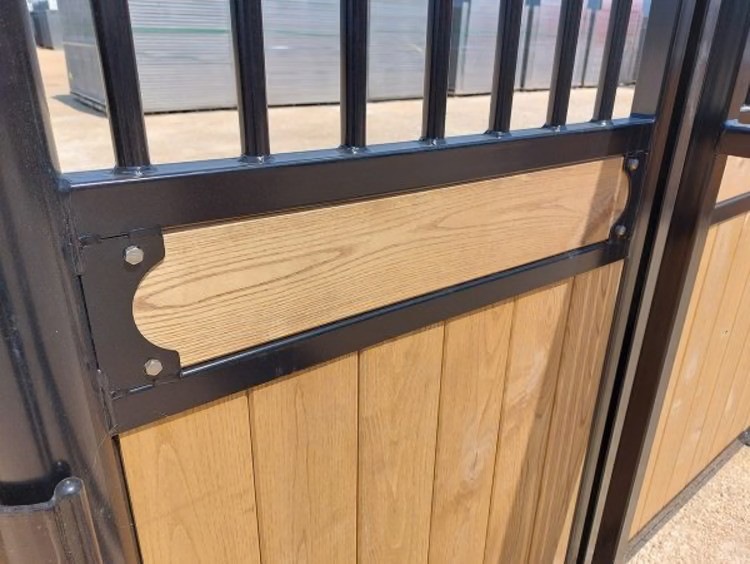

• Horizontal board space on top and bottom
• 2″ x 2″ x ¼” steel mesh on bottom half of the stall
• 3″ spacing between upright vertical spindles on the door
