PRODUCT DESCRIPTION
Key Features:
-
Durable 14-gauge steel frame with long-lasting powder-coated finish
-
Full-swing centre stall doors improve access during chores
-
Elegant curves define the look of modern European stall fronts
-
Compatible with Lakeland horse stalls and stall dividers
-
Ideal for high-end facilities, private barns, and equestrian centers
-
42’’ W Hinged Door opening (between 4’’ round posts)
-
Heavy Duty Spring Latch welded onto Door – accessible from both sides
-
Heavy Duty Stainless Steel adjustable hinges on 4’’ posts
-
4” diameter round posts on each side of door – 60” high, 7-gauge steel
-
4” posts have fully welded cap on top and an 8” round 3/8” thick floor plate on bottom with 4x ½” pre-drilled holes to secure to floor
-
1 ¾’’ x 1 ¾’’ Square Tube End Frames – 12-gauge steel
-
1 ¾’’ round tube for top curved piece – 11-gauge steel
-
1’’ round tube for vertical spindle bars
-
3″ spacing between vertical spindle bars
-
Spindles are 36’’H
-
“C” channel welded to frame for vertical boards – 12-gauge
-
Can mount horse stall fronts to wall/post/divider with 2-Way, 3-Way or Wall Mount Connectors
- Available in 10ft, 12ft & 14ft lengths
Dimensions
- 10′ Front Overall Dimensions: 115.5”L x 84” H (this is to allow for the connectors on each end)
- 12’ Front Overall Dimensions: 139.5″ L x 84″ H (this is to allow for the connectors on each end)

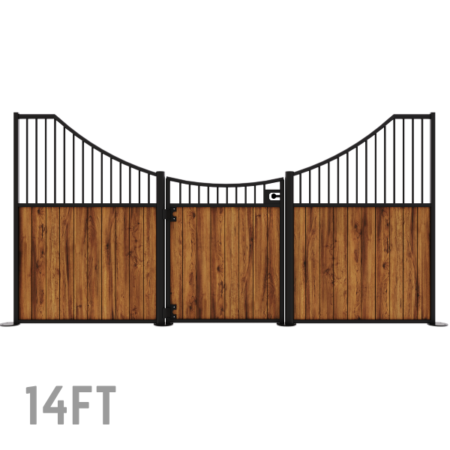

- 14′ Front Overall Dimensions: 163.5”L x 84”H (this is to allow for the connectors on each end)
- Door Height: 60’’H
*Wood not included. Fits standard 2″ x 6″ lumber.
Custom lengths available upon request.*
Optional Upgrades:
- Decorative finial balls for tops of stall fronts
- Premium Horse Stall Mats
- Horizontal board space on top and bottom
- 2″ x 2″ x ¼” steel mesh on bottom half of the stall
- 3″ spacing between upright vertical spindles on the door
ADDITIONAL DETAILS
Architectural Horse Stalls for Remarkable Barns – The Lincoln Collection
Inspired by the strength, integrity and enduring legacy of Abraham Lincoln, the Lincoln Collection brings a bold new presence to Lakeland’s premium European horse stall collection.
The defining feature of the Lincoln Collection is its sculpted upper profile. The outer sections rise toward each end of the stall front before flowing downward into a lower central doorway. This symmetrical shape creates a striking focal point while maintaining an open, airy feel throughout the barn aisle.
Vertical steel bars follow the curve of the frame, giving the entire design a sense of height and movement. Combined with rich wood inserts and a substantial black steel structure, the result is a horse stall front that feels elegant, substantial and highly distinctive.
A Dramatic Centrepiece for the Barn
The Lincoln Collection was created to make an impression from the moment someone enters the barn.
Its wide, sweeping silhouette gives each stall front an architectural quality that standard square or rectangular designs cannot replicate. The raised outer sections add height and presence, while the lower centre door creates a natural visual anchor.
Installed across a full barn aisle, the repeated curved profile creates a cohesive, gallery-like appearance that feels intentional from one stall to the next.
Models
The Lincoln Collection can be configured with four different variations, allowing you to choose the balance of privacy, openness and visibility that best suits your horses and your barn.

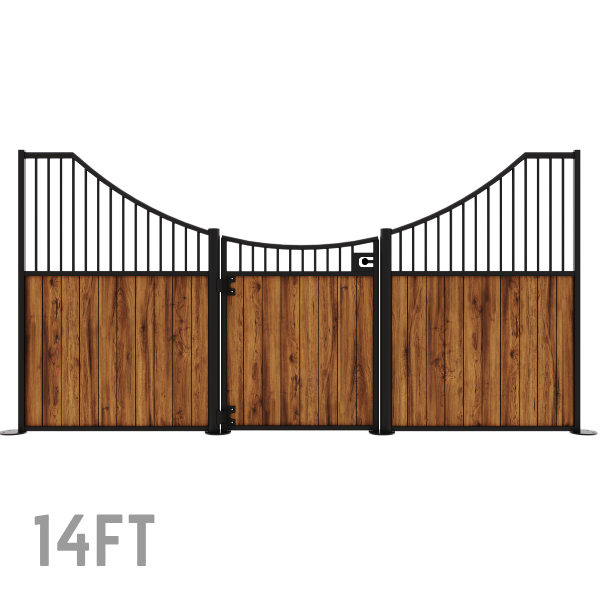

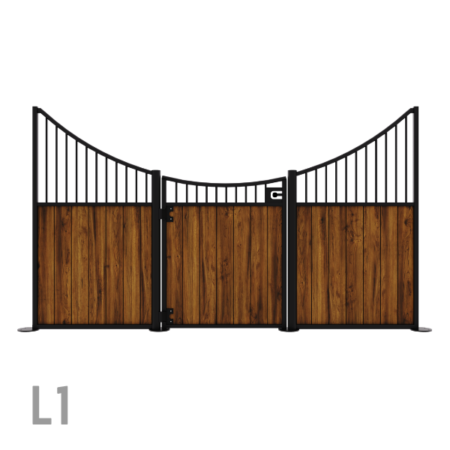

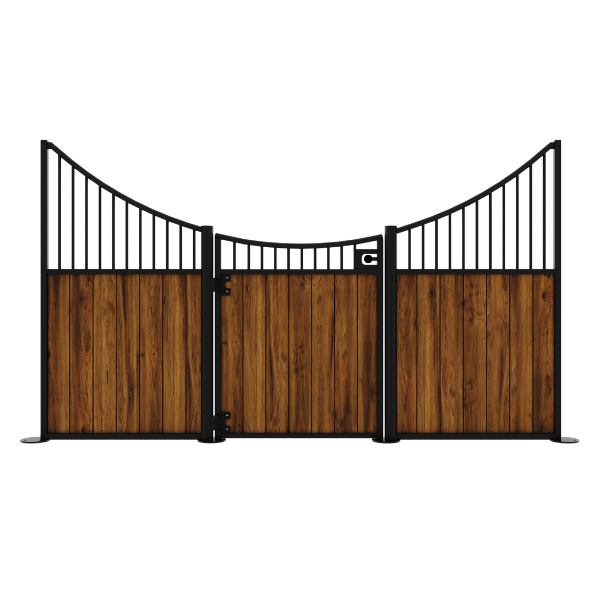

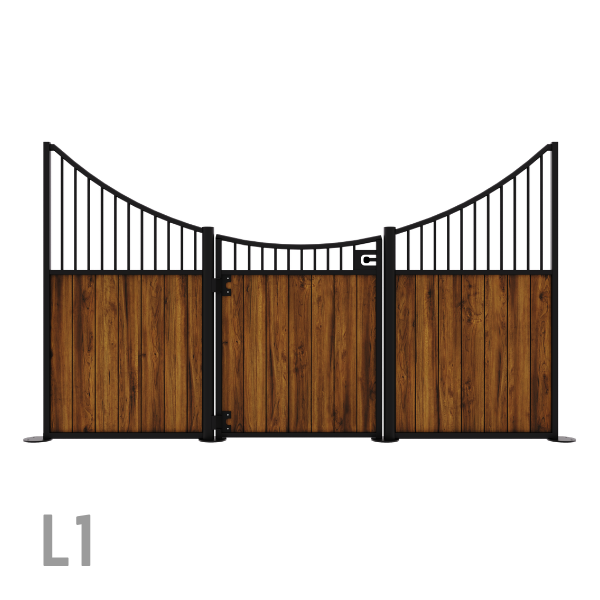

L1 – Full Wood Stall Front
With horizontal wood space on top & bottom, the full-height vertical wood inserts create a strong, enclosed appearance with rich natural texture. This configuration places the focus on the contrast between the warm wood and the curved powder-coated black steel framework.

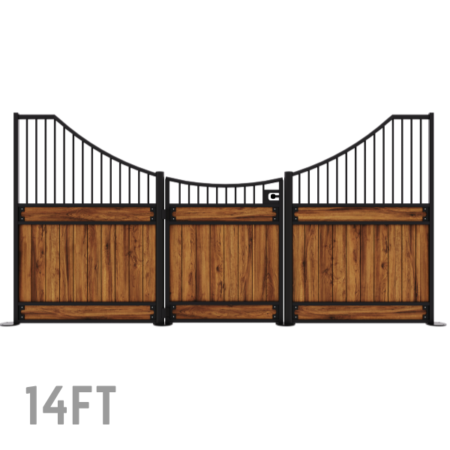

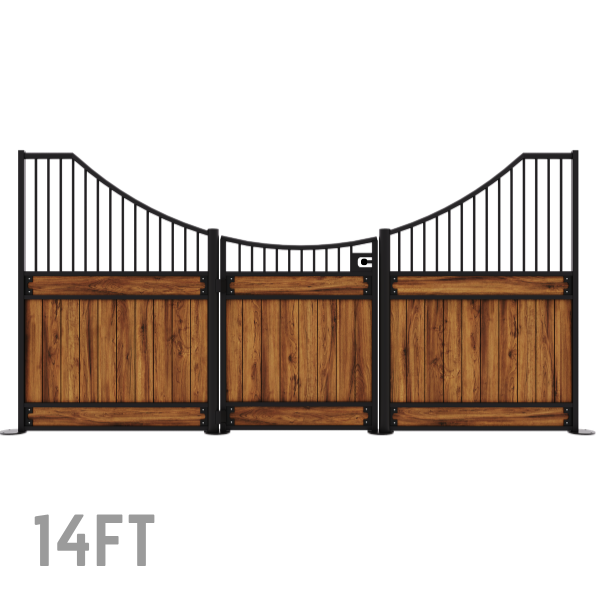

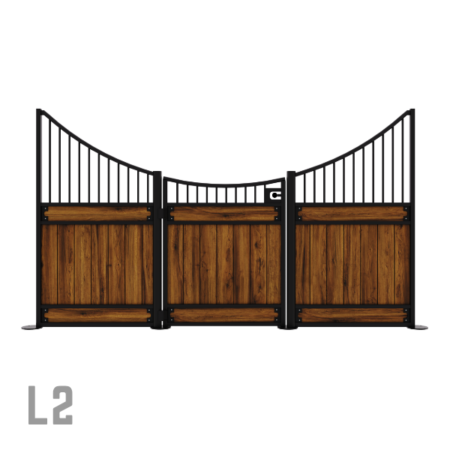

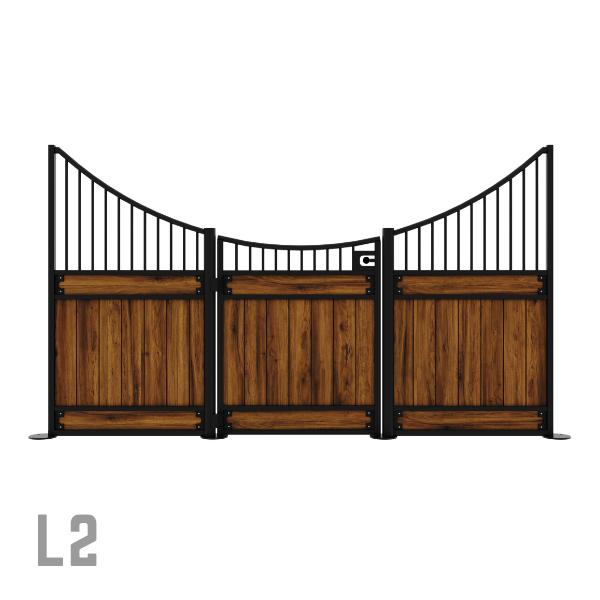

L2 – Wood Stall Front with Framed Accent Rails
Horizontal board space on top & bottom with a mesh door add extra structure and detail across the stall front. This configuration creates a layered, substantial appearance while preserving the collection’s signature curved profile.

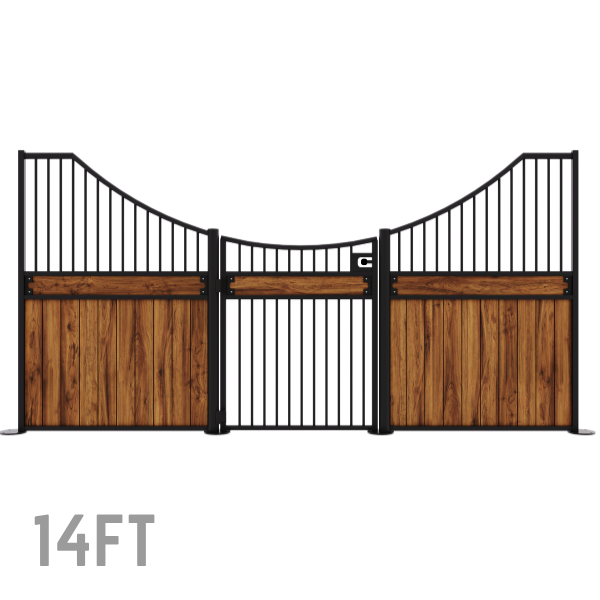

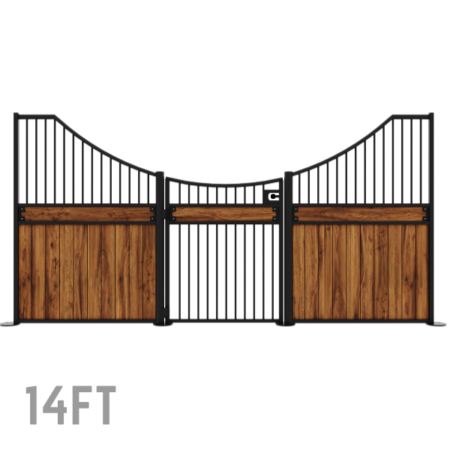

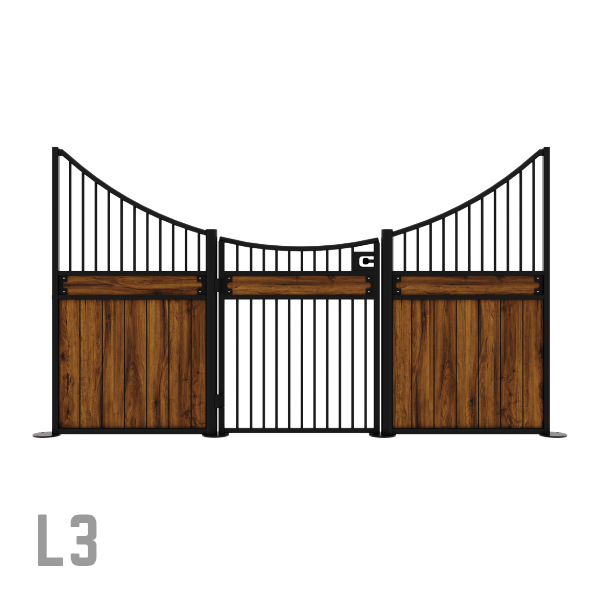

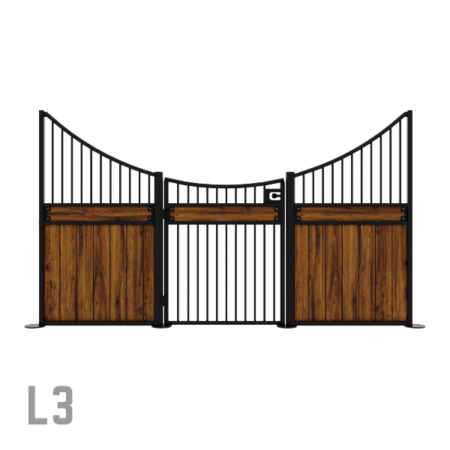

L3 – Open-Bar Center Door
Horizontal boards & board space on top and bottom with a mesh door creates a more open visual connection between the horse and the barn aisle. Paired with wood-filled side panels, this option offers a balanced combination of openness, airflow and privacy.

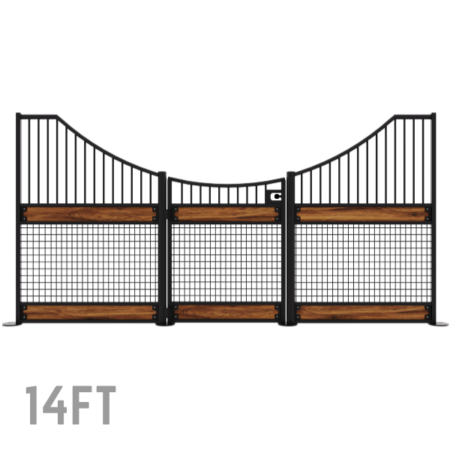

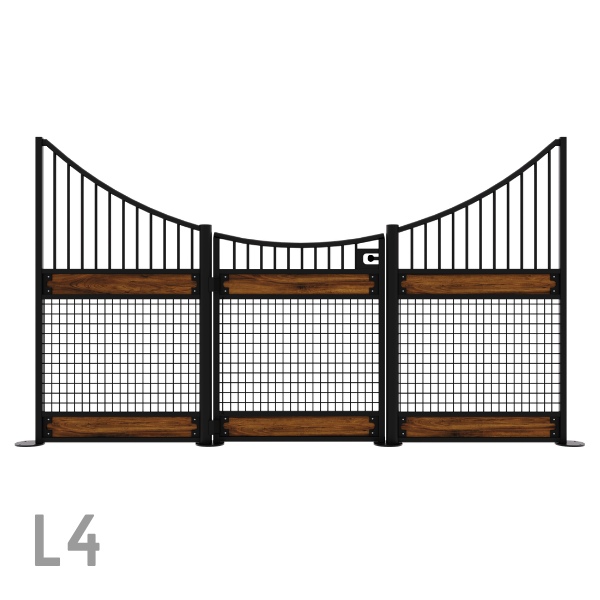

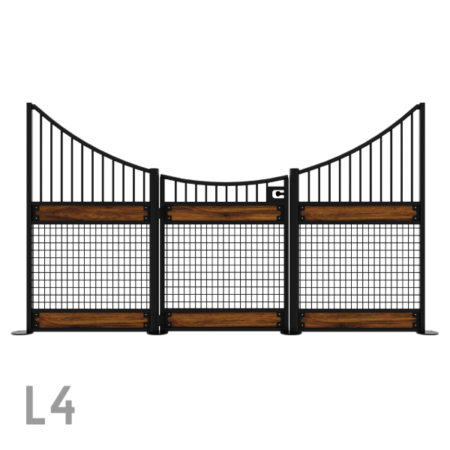

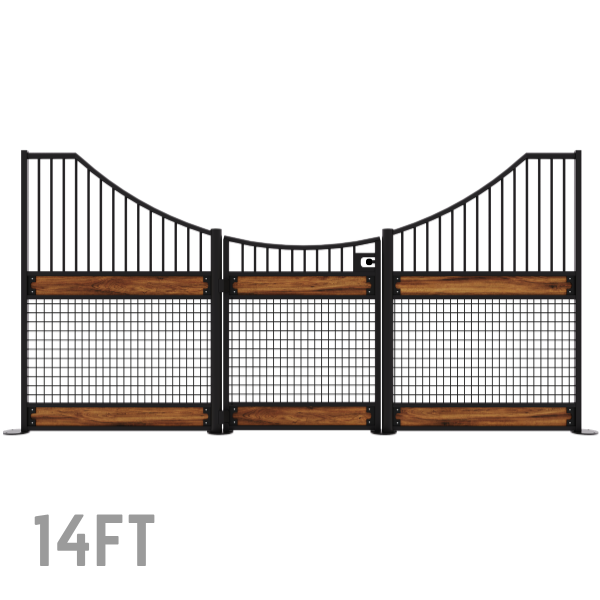

L4 – Full Mesh Stall Front
Horizontal board space on top and bottom with full mesh fronts provides greater visibility and ventilation through the lower portion of the stall front. The wood accent rails soften the industrial look of the mesh while maintaining a premium, coordinated finish.
Custom Horse Stall Fronts for Your Project
Every barn has different dimensions, routines and design goals.
The Lincoln Collection can be tailored to suit your layout, preferred lower-panel configuration and overall barn style. Whether you are completing a new equestrian facility or transforming an existing barn, Lakeland can help coordinate the stall fronts with matching partitions, doors and complementary horse-barn components.
Our team works with you to develop a system that feels consistent across the entire project rather than pieced together stall by stall.
Why Choose Lincoln Collection Horse Stalls?
Signature Sweeping Profile
A dramatic curved silhouette creates a distinctive architectural feature within the barn.
Balanced, Symmetrical Design
Raised outer sections and a lower centre door create a strong, composed appearance.
Multiple Panel Configurations
Choose from full wood, framed wood, mesh or open-bar centre-door options.
Warm Wood and Black Steel
The contrast between natural wood and dark steel gives the collection its premium character.
Improved Visibility and Airflow
Open upper bars, mesh panels and barred-door options help create a brighter barn environment.
Custom Project Support
Lakeland can help coordinate the stall fronts with your dimensions, layout and broader barn design.
Note: We offer Lincoln stall fronts in 3 different lengths. 10ft, 12ft & 14ft. View the size guide here for detailed measurements
Talk to a Lakeland product experts to find the best solutions for your farm or ranch.
